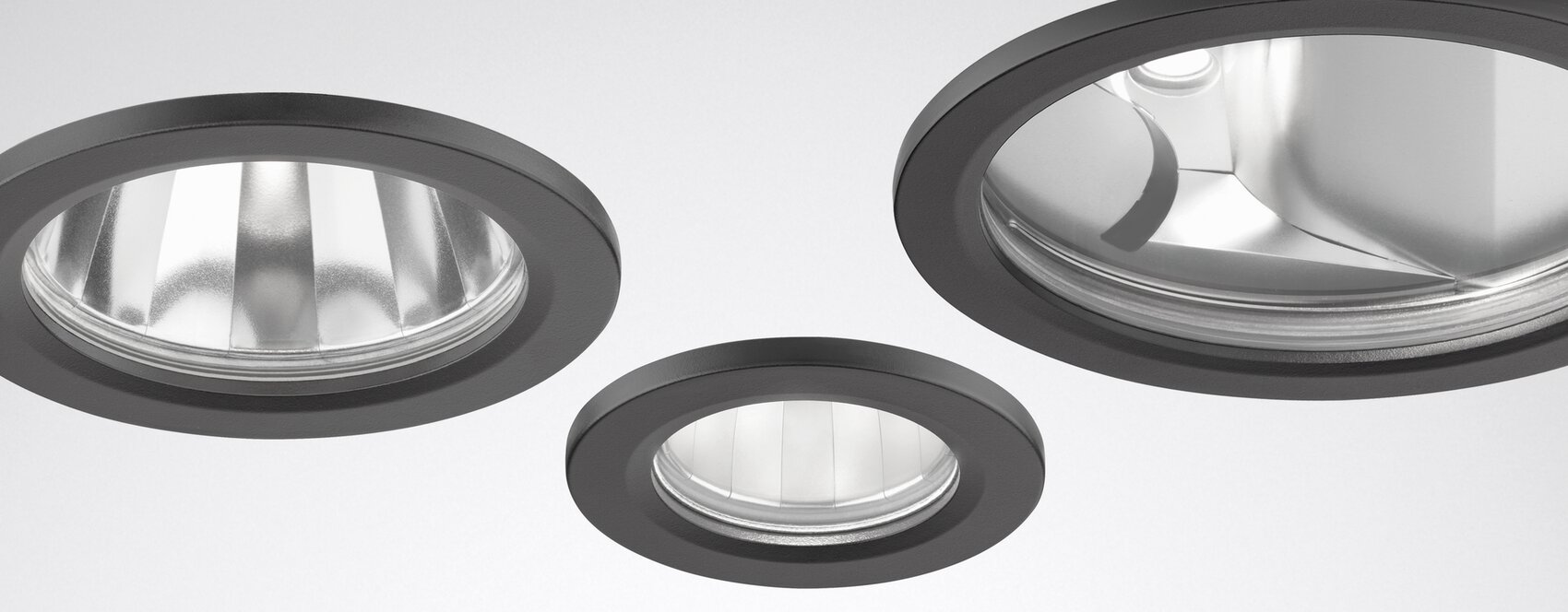

Inveria C

Powerful downlights with high protection class

Inveria C 110, ceiling opening Ø 95 mm

24 Products

Inveria C 150, ceiling opening Ø 131 mm

24 Products

Inveria C 210, ceiling opening Ø 191 mm

24 Products

The versatile Inveria C downlight is suitable for use in prestigious covered outdoor areas, for example in office buildings, hotels and shopping centers, thanks to its high degree of protection (IP65 on the ceiling and room sides) and lighting quality. With three construction sizes, four different beam characteristics, three luminous flux packages and two light colors, the luminaire adapts flexibly to the individual area of application. No wishes are left unfulfilled when it comes to smartness either: In addition to a switchable solution (ET), the Inveria C is also available as a DALI and Casambi version (ETDD) for lighting management applications.

Name	Rated luminous flux	Connected load	Colour temperature	Luminous efficacy	Light distribution
Inveria C 210 RM5R/3200-840 ETBLE +CAS 8361763	3200 lm	41 W	4000 K	78 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RM5R/3200-840 1G1P ETDD 8359351	3200 lm	42 W	4000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RM5R/3200-840 1G1P ET 7769950	3200 lm	41 W	4000 K	78 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RM5R/3100-830 ETBLE +CAS 8361363	3100 lm	41 W	3000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RM5R/3100-830 1G1P ETDD 8359051	3100 lm	42 W	3000 K	74 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RM5R/3100-830 1G1P ET 7769550	3100 lm	41 W	3000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3200-840 ETBLE +CAS 8361663	3200 lm	41 W	4000 K	78 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3200-840 1G1P ETDD 8359251	3200 lm	42 W	4000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3200-840 1G1P ET 7769850	3200 lm	41 W	4000 K	78 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3100-830 ETBLE +CAS 8361263	3100 lm	41 W	3000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3100-830 1G1P ETDD 8358951	3100 lm	42 W	3000 K	74 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RE7R/3100-830 1G1P ET 7769450	3100 lm	41 W	3000 K	76 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3200-840 ETBLE +CAS 8361863	3200 lm	41 W	4000 K	78 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3200-840 1G1P ETDD 8359451	3200 lm	42 W	4000 K	76 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3200-840 1G1P ET 7770050	3200 lm	41 W	4000 K	78 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3100-830 ETBLE +CAS 8361463	3100 lm	41 W	3000 K	76 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3100-830 1G1P ETDD 8359151	3100 lm	42 W	3000 K	74 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 RB22R/3100-830 1G1P ET 7769650	3100 lm	41 W	3000 K	76 lm/W	direct/wide/rotationally symmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3900-840 ETBLE +CAS 8361963	3900 lm	41 W	4000 K	95 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3900-840 1G1P ETDD 8359551	3900 lm	42 W	4000 K	93 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3900-840 1G1P ET 7770150	3900 lm	41 W	4000 K	95 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3700-830 ETBLE +CAS 8361563	3700 lm	41 W	3000 K	90 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3700-830 1G1P ETDD 8339251	3700 lm	42 W	3000 K	88 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 210 AM21R/3700-830 1G1P ET 7769750	3700 lm	41 W	3000 K	90 lm/W	direct/asymmetric/asymmetric	Add to watchlist Add to product comparison Downloads
Inveria C 150 RM4R/2300-840 ETBLE +CAS 8360963	2300 lm	24 W	4000 K	96 lm/W	direct/narrow/rotationally symmetric	Add to watchlist Add to product comparison Downloads
