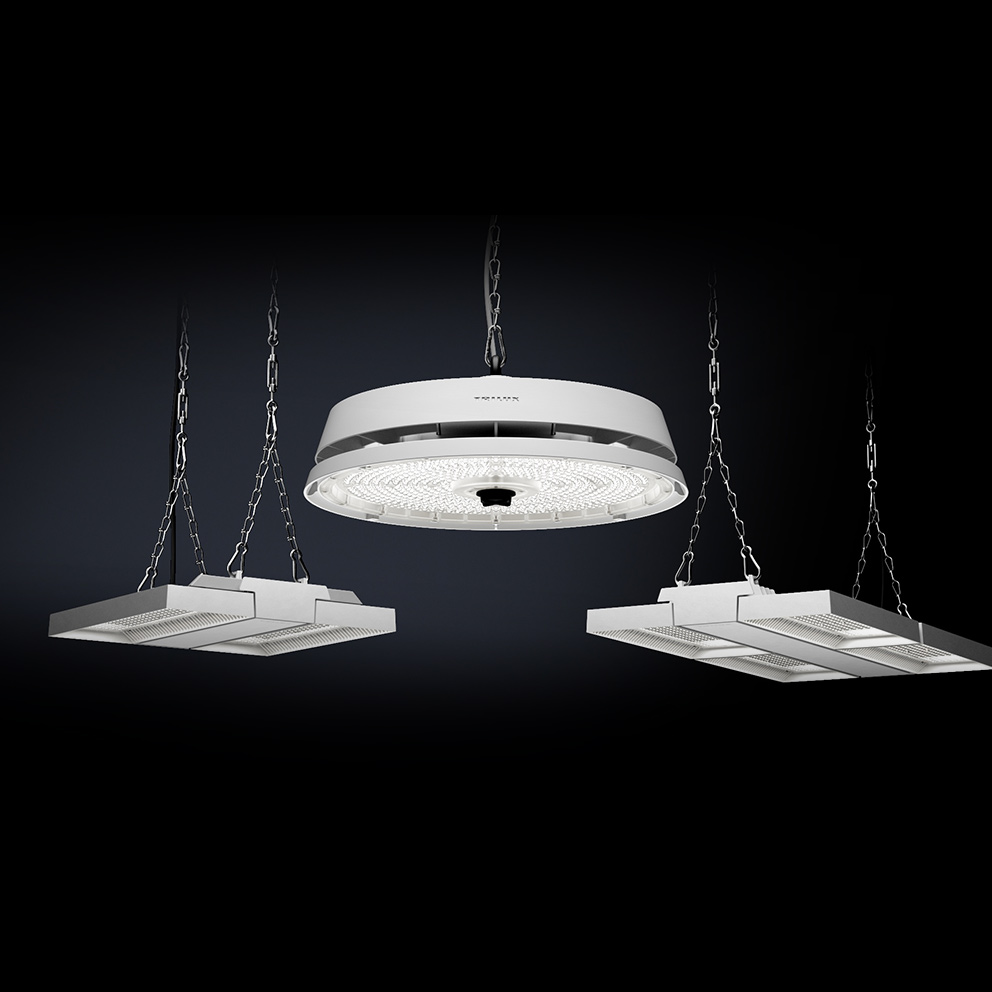

MIRONA FIT

one highbay family fits all

A wide variety of shapes, lighting technology and smartness: the Mirona Fit highbay luminaires provide excellent, highly efficient light in demanding environments such as production and storage halls, heavy industry, canopied outdoor areas, trade fair halls and prestigious areas.

Designed for demanding environments

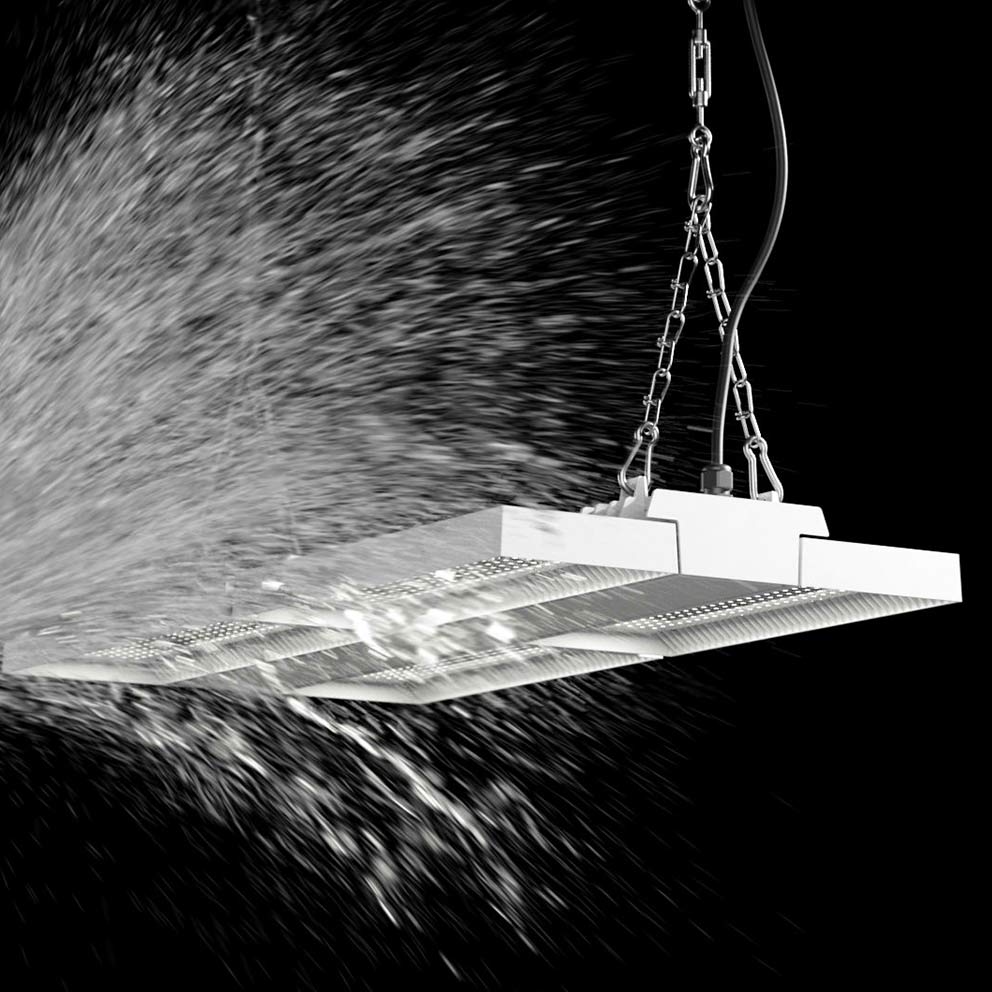

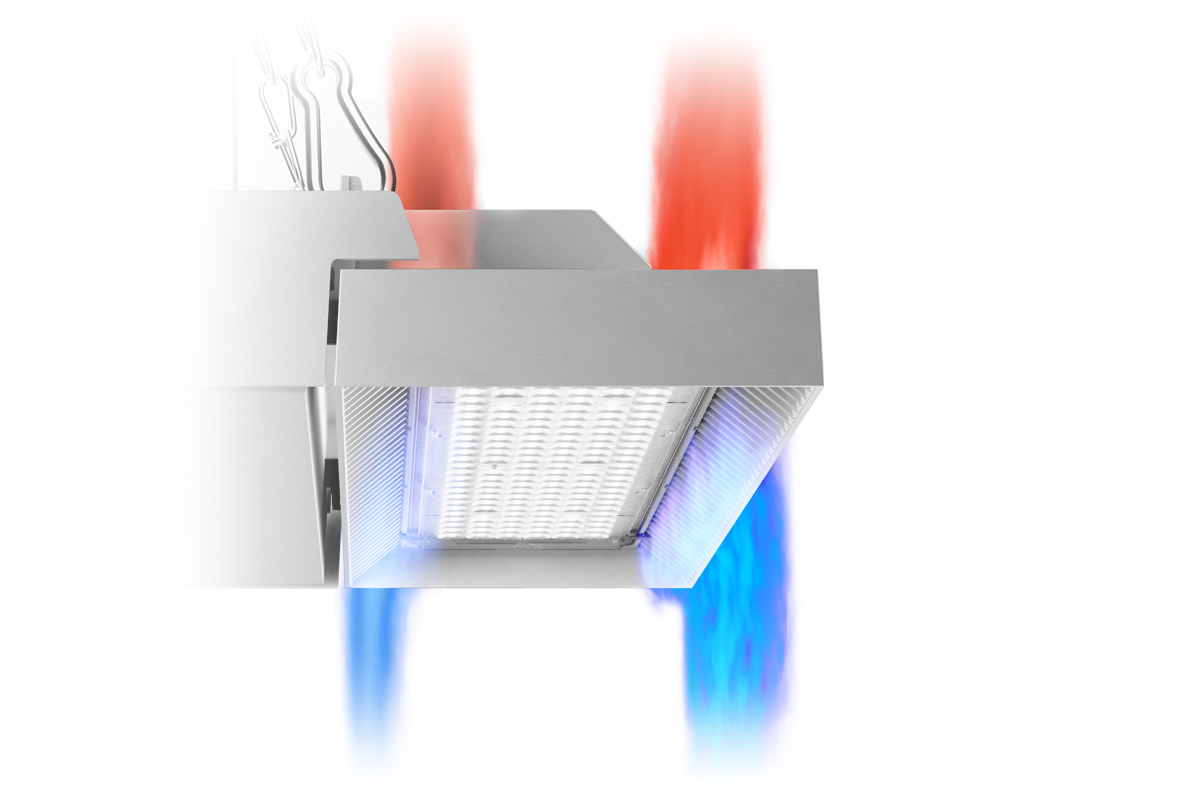

Water, sparks, vibrations – Mirona Fit was developed for use in the toughest conditions and impresses with its high efficiency and long service life as well as outstanding quality of light.

  • Best values with efficiencies of up to 187 lm/W
  • Service life up to 100,000 h, L80 at 50° C
  • For mounting heights of up to 14 metres and more
  • Use in temperatures from - 30° C to + 70° C
  • Wide range of variants, e.g. ball impact protection or safety glass against flying sparks

Designed for demanding environments

Water, sparks, vibrations – Mirona Fit was developed for use in the toughest conditions and impresses with its high efficiency and long service life as well as outstanding quality of light.

  • Best values with efficiencies of up to 187 lm/W
  • Service life up to 100,000 h, L80 at 50° C
  • For mounting heights of up to 14 metres and more
  • Use in temperatures from - 30° C to + 70° C
  • Wide range of variants, e.g. ball impact protection or safety glass against flying sparks

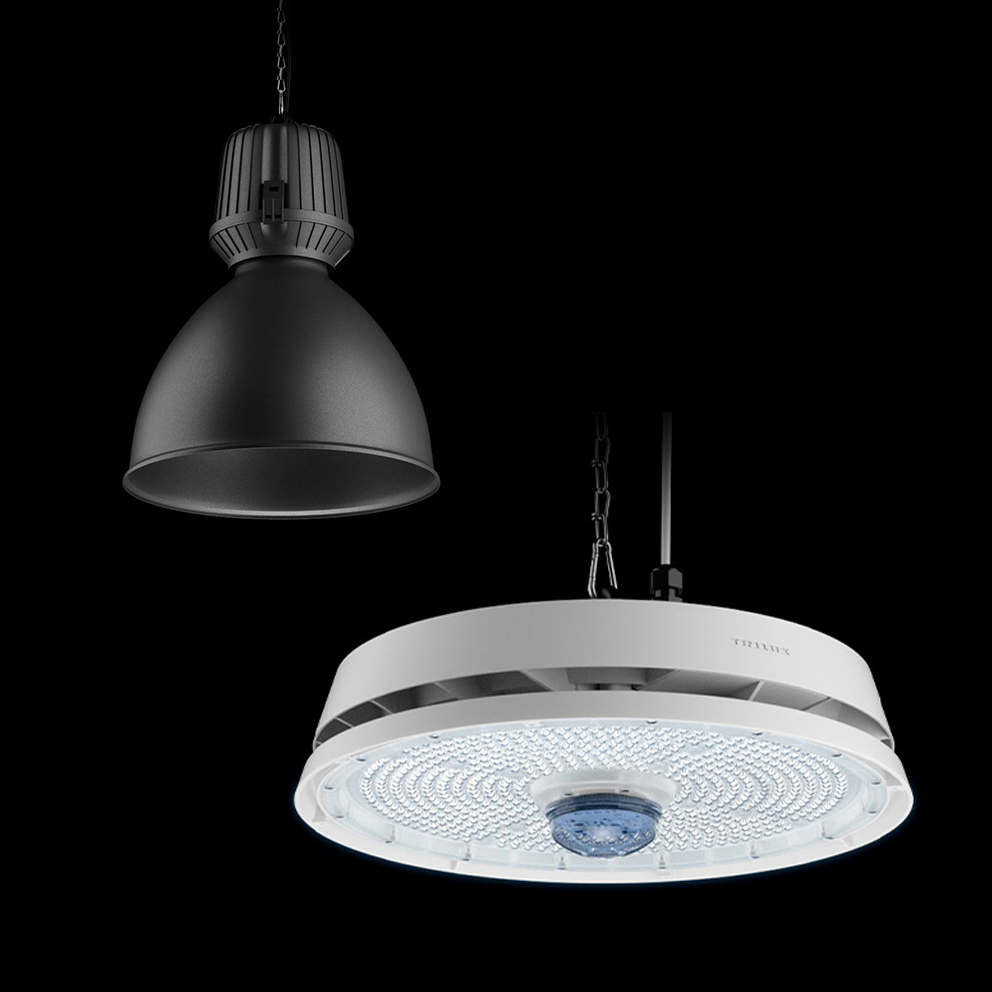

A smart replacement programme

Core expertise easy refurbishing: replacing conventional highbays is quick, easy and reliable thanks to the Mirona Fit family. On request, the luminaires are also available with an open interface for smart sensors and light management. Retrofitting of the above is also possible.

  • Flexibility for one-to-one refurbishment
  • Optional: Zhaga interface for sensors and light management
  • Simple installation thanks to single-point suspension (Mirona Fit R)
  • Wireless networking – no new cables required

A smart replacement programme

Core expertise easy refurbishing: replacing conventional highbays is quick, easy and reliable thanks to the Mirona Fit family. On request, the luminaires are also available with an open interface for smart sensors and light management. Retrofitting of the above is also possible.

  • Flexibility for one-to-one refurbishment
  • Optional: Zhaga interface for sensors and light management
  • Simple installation thanks to single-point suspension (Mirona Fit R)
  • Wireless networking – no new cables required

Permanently carefree

Minimal maintenance costs and continuous operation without interruptions thanks to 100,000 h service life (at tq 50°C). That means 24 years of carefree, high quality light in daily 2-shift operation and 230 work days per year.

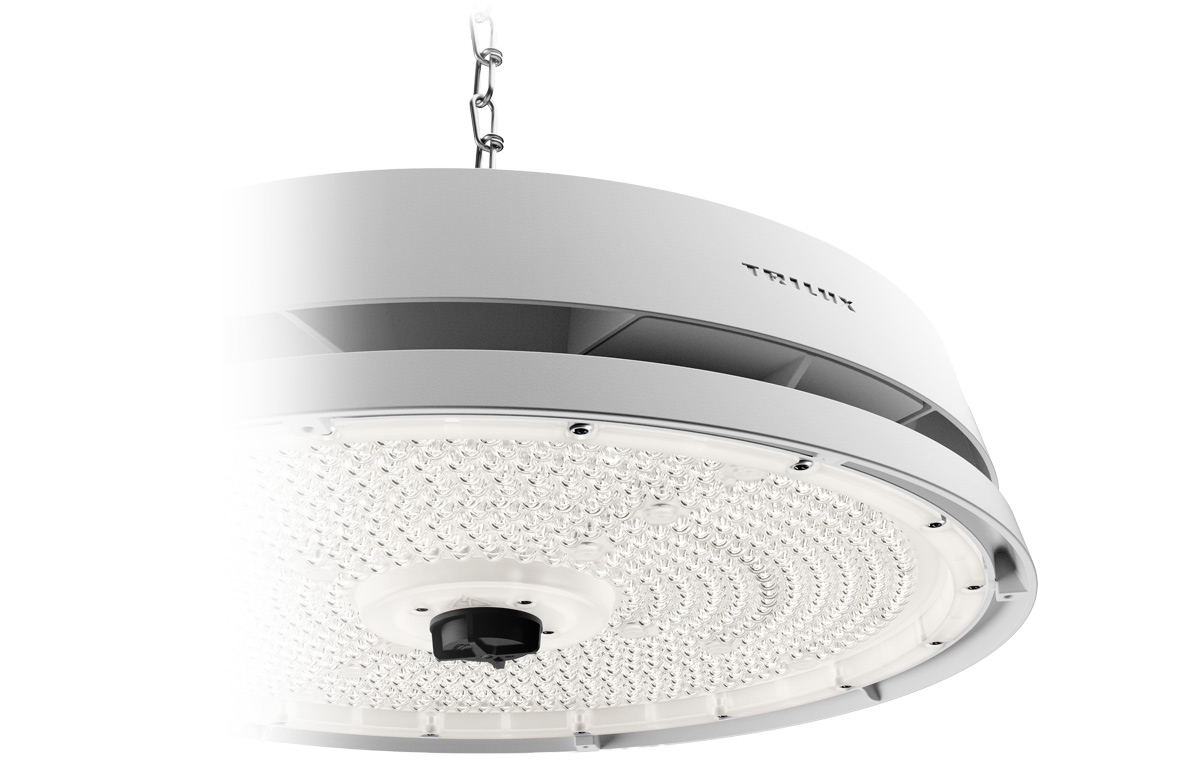

High quality of light for added safety

The Mirona Fit family provides glare-free, uniform, high quality light, even at high mounting heights and illuminance levels, for greater work safety and higher visual comfort.

  • Made in Germany

    The development and production of the Mirona Fit family in Germany is not only a promise of quality, but is also particularly sustainable. For example with short transport routes and high safety and environmental standards along with resource-conserving raw material procurement and a responsible recycling concept.

  • Light management saves

    Light management cuts operating costs by up to 35 % compared to an uncontrolled system. Carbon emissions are also reduced accordingly. This is why luminaires in the Mirona Fit family optionally have an open Zhaga interface, which is perfect for our LiveLink light management system, either with DALI or wirelessly via Casambi. This can also be retrofitted.

  • Ten years of future security

    So that you can also plan far into the future in terms of lighting technology, we offer the TRILUX after-sales promise. That means you can continue to purchase selected lighting solutions from us for ten years after purchase. For certain spare parts (e.g. LED modules, LED control gear units and optics) this is even 15 years.

  • Efficient maintenance and easy recycling

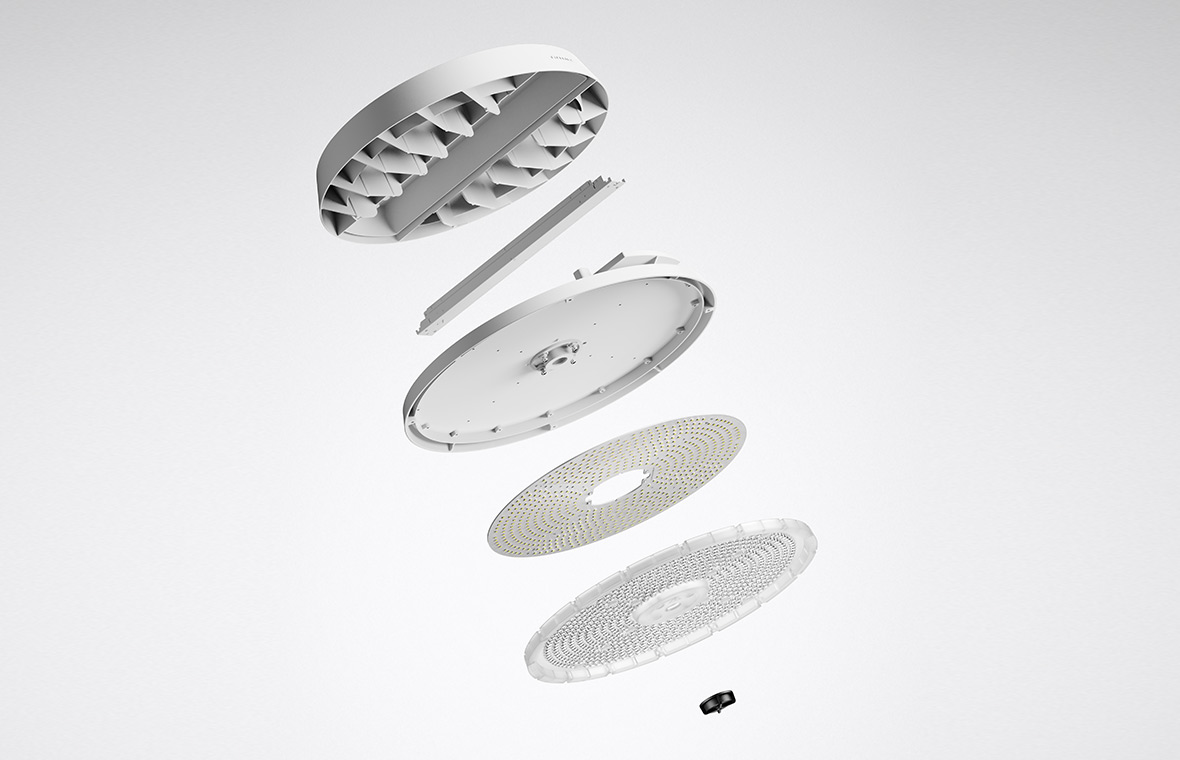

    Thanks to its modular design, the Mirona Fit family is highly recyclable. All components and modules can be quickly and easily removed for maintenance and replaced if necessary. This increases the service life of the luminaires – and therefore also their sustainability.

  • Environmentally friendly packaging

    The sustainable plastic-free packaging concept of the Mirona Fit family not only reduces the amount of waste but also the time needed to unpack and dispose of the packaging.

Discover now

Mirona Fit R & Mirona Fit High bay luminaires

  • Tough industrial cases

  • Warehouses and production facilities

  • Top-sport performance

  • Prestigious light

Mirona Fit R

Highbay in round perfection

Typical Mirona Fit family, but in a round design: the Mirona Fit R highbay luminaire is particularly good for refurbishment projects thanks to its wide range of variants and single-point suspension. A smart feature: an optional Zhaga interface allows sensors and light management to be integrated.

View product

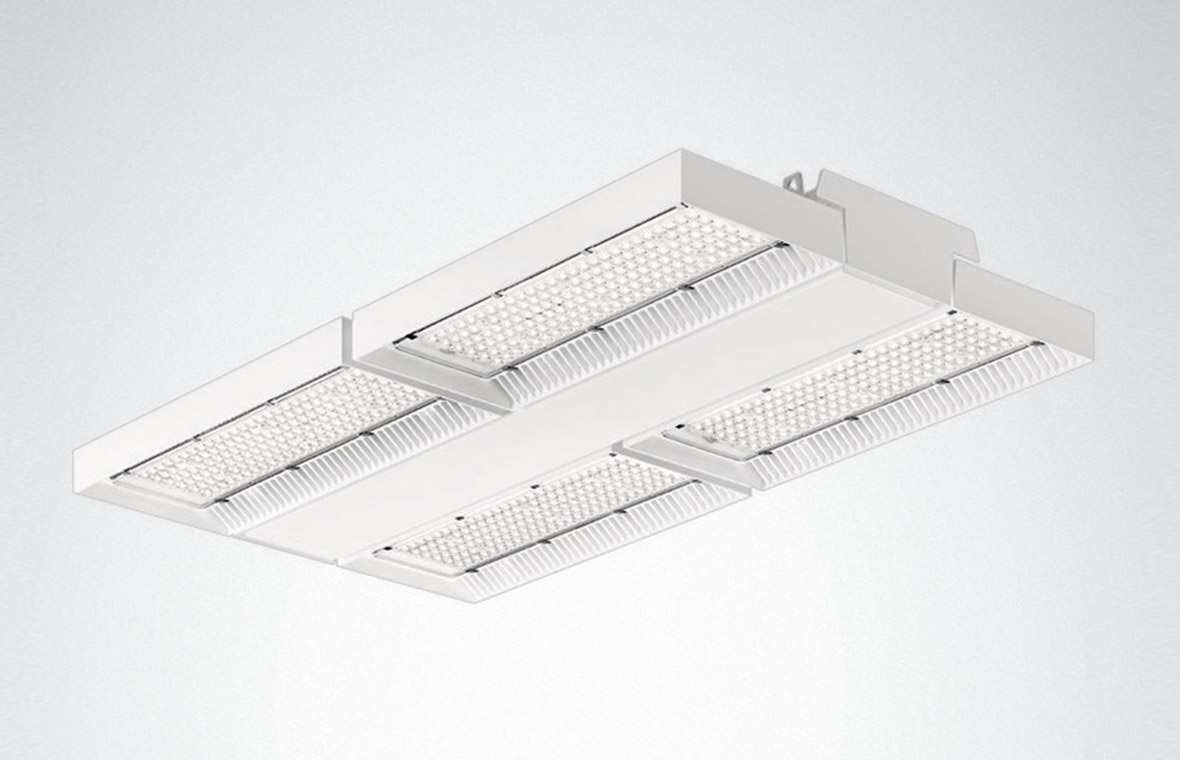

Mirona Fit

Minimum dimensions with maximum power

Mirona Fit LED is the perfect lighting solution for challenging industrial surroundings. Thanks to its wide range of versions it is suitable for e.g. use in warehouses and distribution halls and the heavy industry and foodstuff industry, and emits reliable, uniform, glare-free light.

View product

Technical Data

  Mirona Fit R (Rund) Mirona Fit BS (Basic) Mirona Fit
Lumen packages 15.000
25.000
35.000
2L: 13.000, 17.000, 24.000
4L: 26.000, 35.000, 48.000
2L: 10.000, 13.000, 17.000
4L: 20.000, 26.000, 35.000
6L: 40.000, 52.000
8L: 72.000

Efficiency up to 187 lm/W up to 164 lm/W up to 170 lm/W
Service life
100.000h (L80) 25°C
70.000h (L80) 50°C
50.000h (L80) 45°C 100,000h (L80) 50°C
50.000 (L90) 25°C

Ambient temperature -30° to +50°C -30° to +45°C -30° to + 50°C
TP variants up to +70°C

Protection class IP 65 IP 65 IP 65
Impact resistance IK 08 IK 08 IK 08
HACCP, IFS, BRC-compliant Yes Yes Yes
Test mark CE, D, ENEC CE, D, ENEC CE, D, ENEC
Interchangeability (LEDM, driver) Yes Yes Yes
Optics LW, wide beam with UGR ≤ 25
LW, narrow beam with UGR < 19
B wide beam with UGR ≤ 25
TB, narrow wide-beam with UGR < 22
T, narrow beam with UGR < 22
B wide beam with UGR ≤ 25
TB, narrow wide-beam with UGR < 22
T, narrow beam with UGR < 22
HR, high rack beam with UGR < 22

Color rendering/temperature CRI 80
4.000 K, 6.500K
others on request
CRI 80
4.000 K, 6.500K
others on request
CRI 80, CRI 90
4.000K, 6.500 K
others on request

Areas of application High rooms, halls, warehouses, production facilities, sales areas, trade fair and exhibition halls, heavy industry, representative areas, damp rooms, covered outdoor areas, food areas, limited use in rooms at risk of fire High rooms, halls, warehouses, production facilities, sales areas, trade fair and exhibition halls, heavy industry, damp rooms, covered outdoor areas, food areas, limited use in rooms at risk of fire, sports halls High rooms, halls, warehouses, production facilities, sales areas, trade fair and exhibition halls, heavy industry, damp rooms, covered outdoor areas, food areas, limited use in rooms at risk of fire, sports halls
LiveLink-ready Yes Yes Yes
LiveLink integrated on request on request on request
Zhaga interface Yes Yes Yes
BLE/Casambi possible l About accessories About accessories About accessories
CLO-ready Optional Optional Optional
MOR (Monitoring-ready) Yes Yes Yes
