Inveria C

Strong downlights with a high protection rating

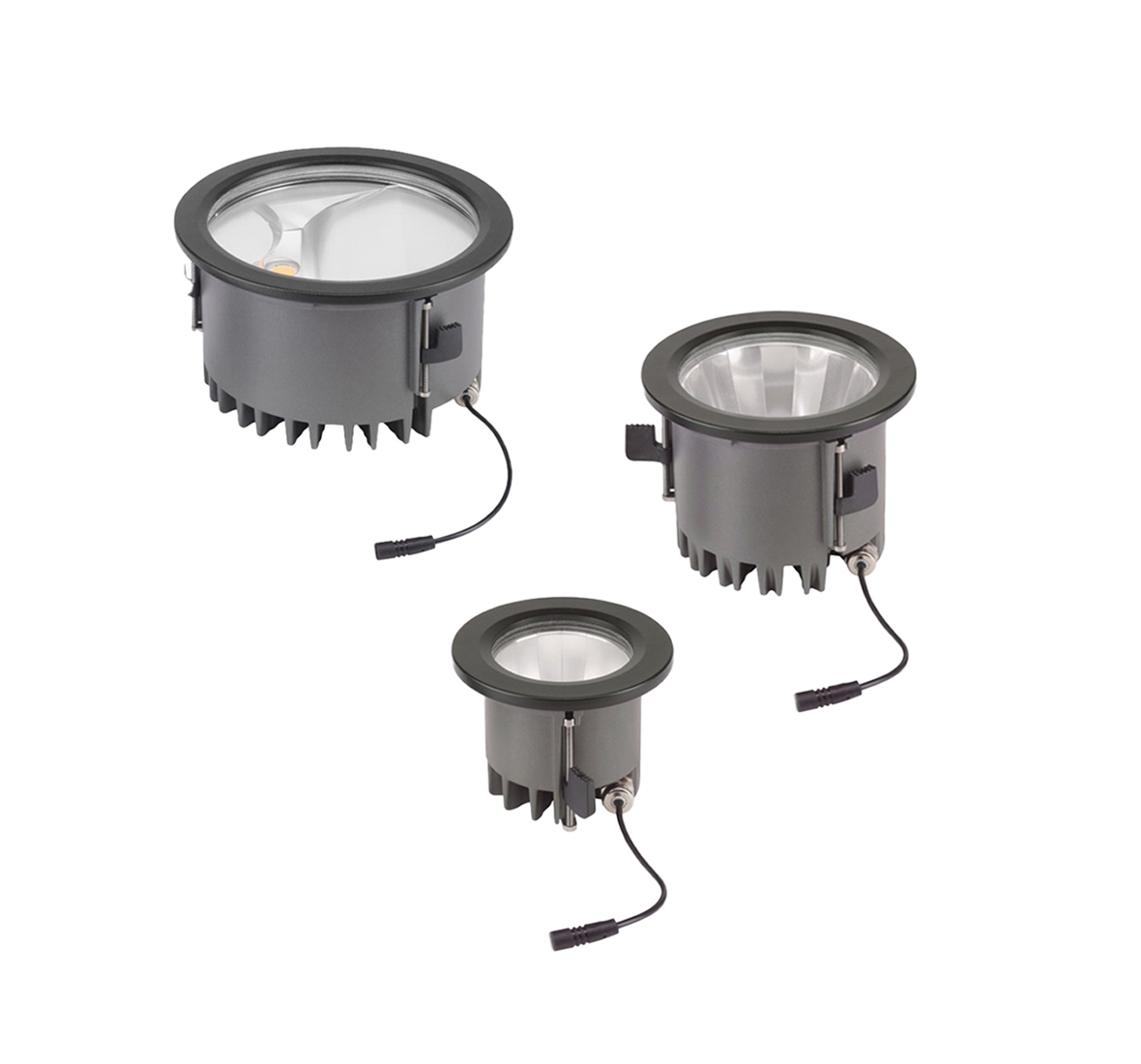

Downlight with several variants, excellent quality of light and high all-round protection rating (IP65).

High flexibility for optimal adaptation to the individual application. Attractive and future-proof thanks to high efficiency, long service life and smart variants

  • Flexibility for customised solutions

    Complete flexibility: versatile configuration options allow Inveria C to be precisely adapted to the individual application.

  • High quality and robust

    A robust unit – with IP65 all-round protection on both the ceiling and room sides, Inveria C is ideal for use in covered outdoor areas. The high colour rendering index of CRI>80 ensures excellent visual conditions and an attractive ambience.

    • IP65
    • CR>80
  • Flexible planning

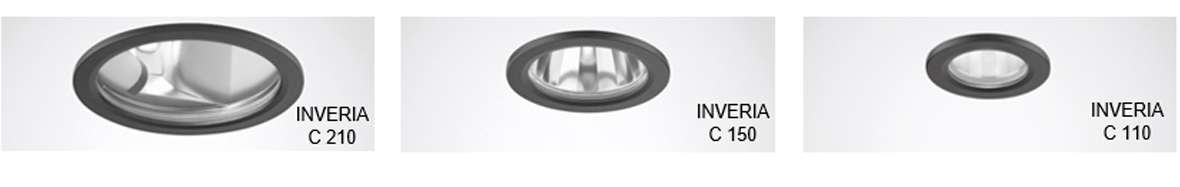

    Thanks to the range of variants with three sizes, three luminous flux packages, two light colours and four light distributions, Inveria C fulfils even complex and demanding lighting tasks with precision.

  • Simple installation

    The compact design ensures easy mounting of the downlight. A special mounting enclosure is also available as an accessory for concrete ceilings.

  • Economical operation

    With its robust construction, high efficiency and long service life, Inveria C ensures permanently reliable and economical operation.

Connectivity and smartness

Open for the future: the DALI variant of Inveria C can be quickly and easily integrated into a light management system such as LiveLink Outdoor. Alternatively, the luminaire can also be easily controlled via Casambi using a free app via smartphone or tablet. This opens up a wide range of possibilities for more efficiency, comfort and smart integration.

The downlight solutions for outdoors

Applications

Wherever there are prestigious covered outdoor areas, Inveria C is in its element. Classic applications are, for example, external entrance zones in office buildings, hotels, supermarkets and industrial companies.

Technical Data

Luminous flux 900 lm - 3,900 lm
Energy efficiency up to 116 lm/W
Lifetime 60,000 hrs.
Circuit type ET, ETDD, Casambi

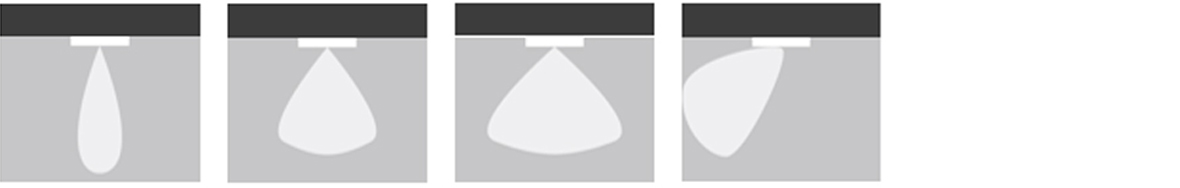

Light distributions narrow/medium/wide beam, asymmetric
Impact resistance IK 07
Color temperature 3,000 K , 4,000 K
Protection class SK II / IP65 (room and ceiling side)

Inveria C LED

view in the online catalogue

View products
