ConStela 19 LED

Smarter. Stronger. More attractive.

The challenge

  1. Future-proof and individual Smart City solutions
  2. Clean illumination of representative public and private spaces
  3. High aesthetic requirements in column design


The solution

  1. Modular column system with individual high-quality lighting technology
  2. Plug and play integration of IoT function modules
  3. Form-fitting slender design for any environment and architecture


Perfect light with Low Contrast Light

The optical system with MLT lenses (multi-lens technology) enables extremely flexible and precise adjustment of the light distribution to the general conditions on site – for example to the installation height and road width – and thus creates perfectly illuminated roads, paths and squares. Outdoor luminaires with Low Contrast Light technology specifically couple the light in a light-conducting panel for particularly pleasant visual conditions outdoors. As an SLR version, ConStela 19 LED can be easily networked via plug and play and thus offers an easy entry into powerful light management.

More information

Perfect light with Low Contrast Light

The optical system with MLT lenses (multi-lens technology) enables extremely flexible and precise adjustment of the light distribution to the general conditions on site – for example to the installation height and road width – and thus creates perfectly illuminated roads, paths and squares. Outdoor luminaires with Low Contrast Light technology specifically couple the light in a light-conducting panel for particularly pleasant visual conditions outdoors. As an SLR version, ConStela 19 LED can be easily networked via plug and play and thus offers an easy entry into powerful light management.

More information

Spotlight

Spotlighting and accent lighting included: ConStela 19 LED not only ensures perfectly illuminated paths and squares – narrow and wide distribution spotlight modules allow e.g. historical buildings or monuments to be perfectly showcased by the light column. Particularly smart: The spotlight modules can be rotated freely through 360°.

Rotatable through 360°

Spotlight

Spotlighting and accent lighting included: ConStela 19 LED not only ensures perfectly illuminated paths and squares – narrow and wide distribution spotlight modules allow e.g. historical buildings or monuments to be perfectly showcased by the light column. Particularly smart: The spotlight modules can be rotated freely through 360°.

Rotatable through 360°

Free WiFi

For public spaces: Equipped with a plug and play WiFi function module, ConStela 19 LED brings free WLAN to public spaces – for up to 500 simultaneous users per luminaire and module. This increases the attractiveness of city centres and enables digital working in parks as well as in squares, in a word: outdoor workspaces.

500 users per luminaire

Free WiFi

For public spaces: Equipped with a plug and play WiFi function module, ConStela 19 LED brings free WLAN to public spaces – for up to 500 simultaneous users per luminaire and module. This increases the attractiveness of city centres and enables digital working in parks as well as in squares, in a word: outdoor workspaces.

500 users per luminaire

Camera

The column that sees everything: With a powerful IoT camera module and a 103° detection range, a wide range of functions can be implemented in public spaces – such as camera monitoring of critical areas or buildings to increase security. In addition, flows of people and vehicles can be recorded and evaluated (people counting, car detection).

103° detection range

Camera

The column that sees everything: With a powerful IoT camera module and a 103° detection range, a wide range of functions can be implemented in public spaces – such as camera monitoring of critical areas or buildings to increase security. In addition, flows of people and vehicles can be recorded and evaluated (people counting, car detection).

103° detection range

Loudspeaker

Ambience and information: Be it quiet background music in squares and promenades or announcements in hotels and shopping malls – the use of loudspeakers in the columns can simultaneously increase the feel-good atmosphere and the length of stay.

Loudspeaker

Ambience and information: Be it quiet background music in squares and promenades or announcements in hotels and shopping malls – the use of loudspeakers in the columns can simultaneously increase the feel-good atmosphere and the length of stay.

Beacon

Push messages for tourism and marketing. Simple IoT beacons in the columns can be used to provide targeted location-based services and information. For example, users with a corresponding app receive push messages about tourist highlights or marketing campaigns on their mobile phones.

Beacon

Push messages for tourism and marketing. Simple IoT beacons in the columns can be used to provide targeted location-based services and information. For example, users with a corresponding app receive push messages about tourist highlights or marketing campaigns on their mobile phones.

Gobo spotlight

Project individual and attention-grabbing messages: A gobo spotlight projects individual logos, lettering or messages onto the floor or a building façade - for example, the city coat of arms on public squares or the company logo in the supermarket or company car park.

Gobo spotlight

Project individual and attention-grabbing messages: A gobo spotlight projects individual logos, lettering or messages onto the floor or a building façade - for example, the city coat of arms on public squares or the company logo in the supermarket or company car park.

Monitor

A column with a screen: A picture (screen) is worth a thousand words. By integrating a monitor on the column, data, images and videos can be displayed in a targeted manner. Especially convenient: The information can be provided either by radio or cable. Simple and secure.

Monitor

A column with a screen: A picture (screen) is worth a thousand words. By integrating a monitor on the column, data, images and videos can be displayed in a targeted manner. Especially convenient: The information can be provided either by radio or cable. Simple and secure.

E-charging station

E-power for the car park: With a plug and play function module, ConStela 19 LED transforms into a charging station for e-cars in no time at all. Electric vehicles can be charged via a Type 2 connector with 11 kWh. An ideal way, for example, to increase the attractiveness of a supermarket and company car park.

11 kWh charging power


E-charging station

E-power for the car park: With a plug and play function module, ConStela 19 LED transforms into a charging station for e-cars in no time at all. Electric vehicles can be charged via a Type 2 connector with 11 kWh. An ideal way, for example, to increase the attractiveness of a supermarket and company car park.

11 kWh charging power


Environmental data

Measurement network for determining air pollutants

Hawa Dawa Sentience devices can be used to set up a measurement network for determining air quality with street-level accuracy. Various evaluation options in the data center including alerts in case of danger of exceeding (European) limit values as well as cause research considering other parameters such as road traffic or weather (wind speed) are thus possible.

Seawater-resistant surface

Poised in bracing climates, well-adjusted to humid, salty sea air: The seawater-resistant paint finish in a DB color of the column permanently protects ConStela 19 LED from corrosion in harsh seaside environments.

Strongest column

Stronger than all the others:  Thanks to its robust design, ConStela 19 LED proves its worth even under the toughest operating conditions. It is approved for use up to the highest wind zone 4 with terrain category 1, defying wind and weather on beach promenades as well as in exposed locations in the mountains.

Wind zone 4

Colour selection

Individuality and aesthetic value. It doesn’t always have to be anthracite. On request, ConStela 19 LED is available with a special paint finish in a wide range of colours, e.g. in one of 215 RAL colours – from the supporting column to the function modules to the luminaire head.

215 RAL colours


Anti-graffiti paint

No use in smearing. Graffiti simply rolls off:  A special anti-graffiti paint prevents graffiti smears as well as stickers on the surface. In addition, the column can be cleaned particularly easily and efficiently thanks to the special paint.

Inspiration

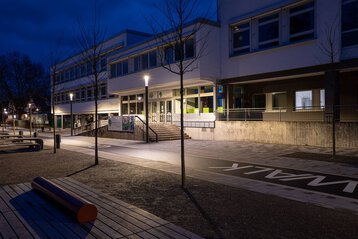

Campus

100% ready for university

ConStela 19 LED is not only convincing in the major subjects lighting technology and aesthetics. It also shines in all minor subjects, for example by providing WiFi or screens in outdoor areas.

Train stations and airports

All aboard

WiFi for people waiting, loudspeakers from the column, cameras that increase security – ConStela 19 LED has all this on board where requested.

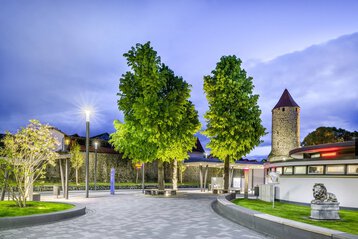

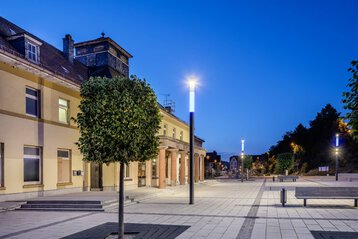

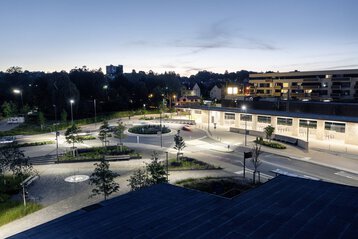

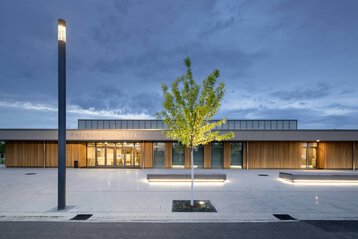

Squares and pedestrian zones

Added value for cities

More than just neatly illuminated paths and squares – buildings or monuments can be perfectly showcased using a wide selection of spotlight modules. Thanks to anti-graffiti paint, the good impression lasts permanently.

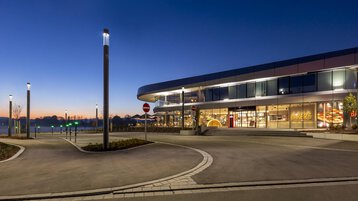

Harbour promenades

Safe in wind and weather

ConStela 19 LED defies aggressive seawater as well as the strongest storm – making harbour promenades shine in the best light thanks to its design and quality of light.

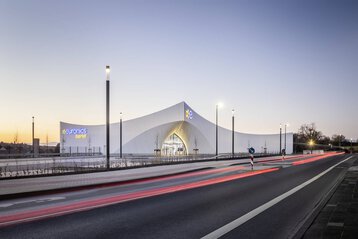

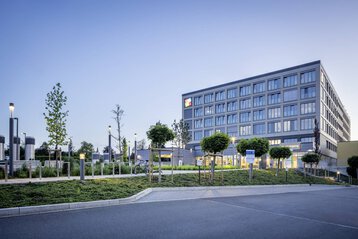

Parking spaces

Potential for supermarkets and companies

ConStela 19 LED upgrades privately managed car parks in several ways – e.g. through light and design, through columns in corporate colours or through IoT applications with added value, such as security cameras.

Shopping mall

Shopping with smart support

Quality of light, design and innovative IoT applications such as cameras, WiFi or beacons are the convincing added values of the form-fitting column. This makes ConStela 19 LED suitable not only for outdoor use but also for transitional and indoor areas. This enables holistic solutions across building boundaries.

Hotels

Stylish across all boundaries

The classic, simple column scores points with quality of light, design and innovative IoT applications such as cameras or screens. It therefore enhances not only the exterior but also transitional and indoor areas.

Planning

Anything is possible

Thanks to MLTIQ, the distribution characteristic can be perfectly adapted to the conditions on site – with installation heights between 4 and 7 metres. The robustness of ConStela 19 LED as well as a wide range of function and IoT modules remove any limits to possible applications.

Installation

Quick and clean

A convenient installation aid makes installing the column quick and safe. Clever tools also simplify the alignment of luminaire head and function modules. This keeps effort and costs to a minimum.

Operation

Economical, durable and smart

High efficiency, a long service life of 100,000 h, clever features such as Constant Light Output (CLO) and optional light management guarantee permanently low operating costs. The individual fitting of the columns with smart modules makes each ConStela 19 LED unique.

Design

Perfect proportions and a functional design gap

Not only the sizes and proportions of the supporting column, luminaire head and function modules are perfectly matched. The individual elements are clearly delineated from each other at the transitions by a specially developed design gap. This makes the functionality of the column recognisable, contributing to its uniquely high aesthetic appeal.

Technical data

Light distribution Asymmetric wide distribution, rotationally symmetric wide distribution
Spotlight rotationally symmetric narrow distribution, rotationally symmetric wide distribution
Electrical version ETDD and SLR
Installation height 4 m to 7 m
Intermediate elements 0,5 m / 1m / 2m
Luminous flux up to 5.100 lm
Energy efficiency up to 118 lm/W
Lumen options 2.000 lm - 5.100 lm
Service life 100.000 h CLO
Colour rendering/temperatures 730, 740
Connected load 20 W - 43 W
Protection rating IP65 / SK II"
