Opendo H

Opendo H1-L PW19 53-830 ET 01

TOC: 7747840
Luminaire colour: RAL9016 Traffic white

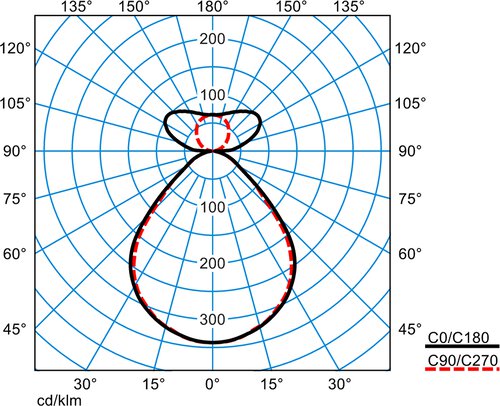

Light distribution curve: Wide reduced glare UGR19 (W19)
Light emission: direct / indirect
Rated luminous flux: 5000 lm
Connected load: 43 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 116 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 15.8 UGR_C0
15.5 UGR_C90

TOC: 7747840
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Wide reduced glare UGR19 (W19)
Light emission: direct / indirect
Rated luminous flux: 5000 lm
Connected load: 43 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 116 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 15.8 UGR_C0
15.5 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: -
Protection class: I
Impact resistance (IK): IK03
Hot wire resistance: 650 °C
Mounting type: Suspension
Dimensions: 1127 x 160 x 47 mm
Weight: 4,2 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Lighting technology

Select light distribution

Light calculator

Light calculator

lightCalculator.image.alt

Light calculator

No downloads available for this product

Accessories list

Name	Description	Weight
03630S Vacuum Plug 2926500	Removal tool for removal of panel covers during maintenance.	0,008 kg	Add to watchlist Add to product comparison Downloads
ZAA/01 4601700	Ceiling canopy, round. Colour white.	0,07 kg	Add to watchlist Add to product comparison Downloads
ZAA/03 4601800	Ceiling canopy, round. Colour silver-grey.	0,07 kg	Add to watchlist Add to product comparison Downloads

3 from 16 accessories
