Twice as unique
As unique as your store concept
Simply different: YUVIO TRACK and YUVIO TWIN interpret spotlights as modern design objects – clear and easily recognisable. Their free-form lenses combine the advantages of reflector technology and lens technology
YUVIO’s free-form lenses not only look different, they also offer superior quality of light: optimum precision of the light distribution thanks to the specific lens contour, excellent glare control and high efficiency of up to 160 lm/W.
With rotationally symmetric spotlight characteristics from Super Spot to Medium Flood and Flood as well as wide-area oval distribution (34°x78°), YUVIO TRACK illuminates end-of-aisle displays, high decorative elements, merchandise racks, shop windows and rear walls in retail – and also creates lively, high-contrast accents in hotels, restaurants and exhibitions.

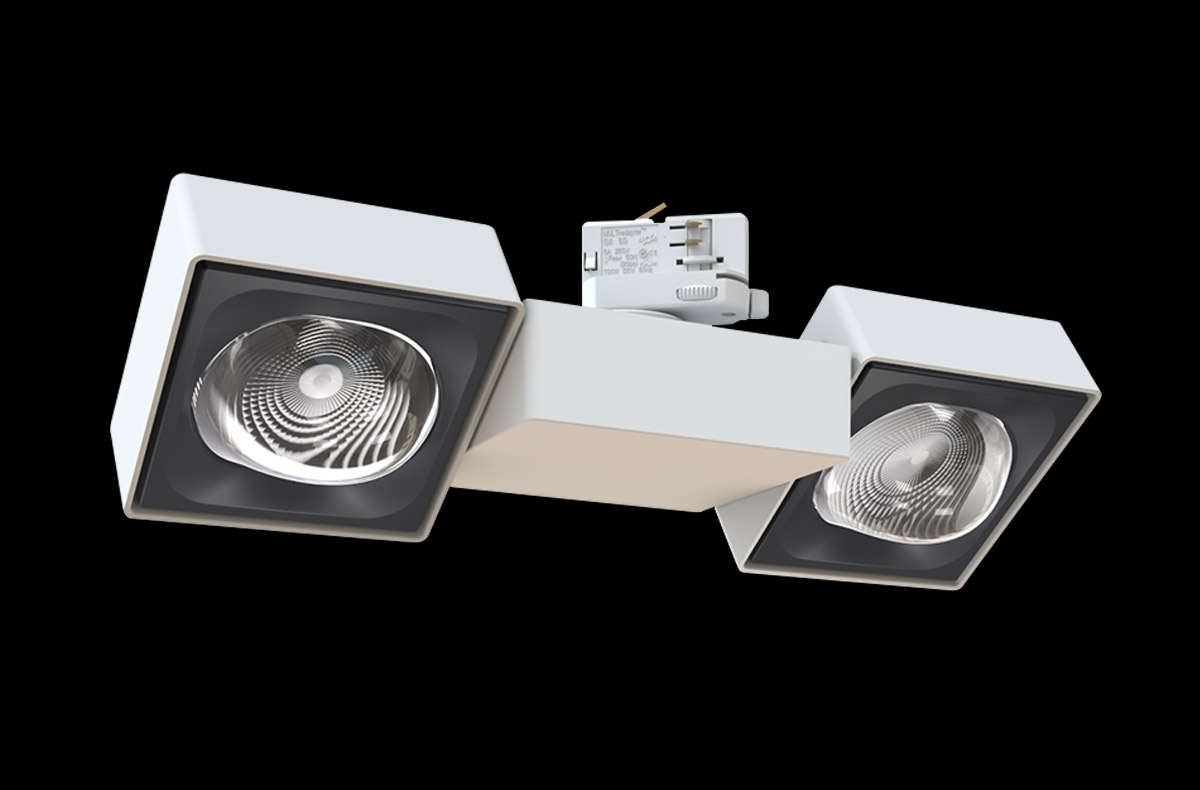

Thanks to two spotlight heads per luminaire, YUVIO TWIN generates high luminous flux levels. The oval distribution (34°x78°) is ideal for planar illumination of assortment aisles and rear walls. Minimalist: thanks to the flush adapter, the LED drivers disappear almost invisibly into the track.
The shape of the lens in combination with the applied structure defines the light distribution and quality of the light image. The shape itself, the clear facets in the light injection area and partially frosted segments of the lens ensure a precise light image without disturbing colour shifts at the edge of the light beam.
The lighting technology of Yuvio consists of a lens optic with an applied facetted structure. The free-form lenses made of transparent, thermoplastic material not only look different to conventional lighting technology but also feature special properties.
The free-form lenses are the visible feature of Yuvio’s qualitative and unique lighting technology. The result of the high-precision optical system is a solution that is virtually unrivalled on the market in terms of image quality, uniformity, visual comfort and diversity of applications. In addition to the unique oval light distribution, four rotationally symmetric distributions are also available.
A pre-attached lock on the track adapter ensures absolute parallelism to the track. When the lock is removed, Yuvio Twin can be rotated through 314°. Each light head can be swivelled 30° in both directions.
YUVIO spotlights can be seamlessly integrated into smart light management: in addition to the switchable standard version, you have the choice between DALI or wireless control with Bluetooth LE.
Authentic illuminations with e.g. Brilliant Food, Brilliant Colour, Efficient White and Efficient Cool
Spotlights as modern design objects with a clear and recognisable shape: YUVIO spotlight heads are square, flat and elegant with precise radii at the edges. Added to this is the striking look of the free-form lenses.
From the illumination of product aisles to the accentuation of individual displays, merchandise fixtures, presentation areas and end-of aisle-displays. And there are also the familiar, diverse options for wattages light colozrs and control options, giving individual scope for design.
Thanks to the exclusive lighting technology of the concise free-form lenses, which not only provide the highest quality of light but also a diverse and unmistakable appearance. Vibrant and rich in contrast with significant accents – the right lighting tool for numerous retail formats.
A large number of products and brands fill the shelves of merchandise aisles. Rear walls have a strong long-distance effect both as spatial boundaries and as carriers of information. Oval free-form lenses ensure uniform and three-dimensional illumination of vertical surfaces and allow a quick general overview.
