A gas-proof LED solution for special areas
Along with dirt, extreme temperatures and humidity, gases and fumes in the ambient air are a challenge for the lighting system – for example sulphur, chlorine and ammonia fumes in tyre warehouses or special industrial areas as well as chemicals in wash lines. If the reactive gases enter the luminaire this reduces the service life and quality of light.
Duroxo G2 LED is completely gas-proof – and therefore the ideal solution for atmospheres with fumes, gas and solvents. In addition to gas resistance the luminaire is also resistant to water and cleaning chemicals, and ensures continuously high quality and energy-efficient light with a service life of 100,000 h (L80 at tq 35°C). Also, the performance data of Duroxo G2 LED can be simply exported to monitor and optimise the energy consumption and maintenance cycles.
Energy efficiency to 146 lm/W, long 100,000 h service life (L80 at tq 35 ËšC)
Can be integrated into the LiveLink light management system, Readout of operating data in real time for the proactive optimisation of energy consumption and maintenance intervals
No tube clips and hanger bolts are needed for standard mounting in indoor rooms (with ceiling mounting, application-specific wall mounting and the suspended version). Fixing is simple and without tools using the reliable continuous row mounting clips from TRILUX.
Thanks to the new, flexible connection cable of Duroxo G2 LED, problems during installation that often occur with rigid cabling are now a thing of the past.
A mounting set consisting of tube clips and hanger bolts is available as standard in the form of accessories for Duroxo G2 LED. With the tube clips the luminaire has 360° adjustment, so that the lighting can be optimally adapted to the spatial conditions on location. Thanks to the mounting kit, alternative mounting applications in adverse conditions can be carried out, e.g. in outdoor areas or applications with increased mechanical loads such as vibrations.
The gas-proof luminaire has an IP69K protection rating, increased impact resistance of max. IK10 and is designed for ambient temperatures from -25°C to 50°C. With high energy efficiency of 146 lm/W and an extremely long 100,000 hour service life (L80 at tq 35°C), Duroxo G2 LED ensures continuously low operating costs.
The robust housing of plexiglass (PMMA) is resistant to cleaning agents and disinfectants and can be thoroughly cleaned particularly easily.
On request, Duroxo G2 LED is available with Constant Light Output technology (CLO). CLO guarantees uniform luminous flux and low energy consumption over the complete service life.
On request, Duroxo G2 LED can be integrated into the LiveLink light management system. This gives operators a view of all operating data in real time, enabling them to proactively take measures for optimising energy consumption and maintenance intervals. That minimises expensive downtimes and improves safety and flexibility.
Completely gas-proof lighting solution for use in gaseous or solvent-containing atmospheres as caused by sulphur fumes, chlorine fumes or ammonia fumes

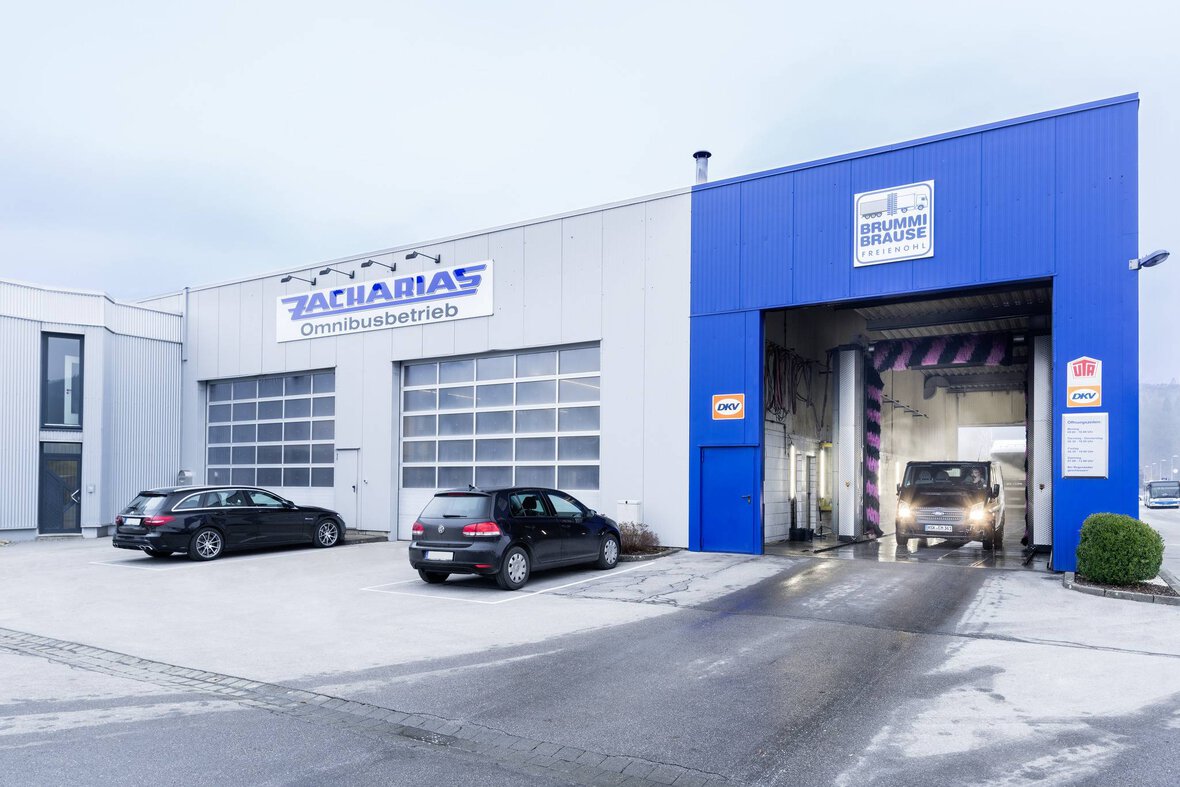

Ideal for e.g. tyre warehouses, wash lines, swimming pools and special industrial areas
Extremely long service life of 100,000 h (L80 at tq 35°C)
Robust PMMA housing, protection rating IP69K, impact resistance max. IK10
Monitoring of all lighting-relevant operating data is possible
With Duroxo G2 LED, LED technology is now implemented in damp rooms with challenging atmospheres, e.g. in tyre warehouses, swimming pools, industrial production plant and wash lines. The gas-proof and impact-resistant luminaire resists sulphurous, chlorine and ammonia gases and generates high quality light for 100,000 hours.
