E-Line Pro

Skeo Pura LED

Flat squares for attractive facade lighting

The challenge

Contemporary lighting around buildings must not only provide safe orientation in darkness but is also a decisive factor in design that impacts the external effect of the building. Solutions are required that facilitate very different demands with facade and path lighting to be implemented in a uniform language of design.

The solution

During the day the design inspires, and at night it scores points with light – the Skeo Q LED range includes square wall and ceiling luminaires, projectors and bollard luminaires. During daylight the purist, modern shape blends harmoniously into its surroundings and provides attractive accents. At night the flexible family of luminaires displays paths and facades using high quality, energy-efficient light adapted perfectly to the framework conditions.

Ideal for outdoors: the IP65 protection rating provides complete protection from dust and jet water from all directions. Thanks to impact resistance according to IK07 the glass can withstand strong knocks, flying balls and other typical challenges of unattended outdoor areas. In addition, the Skeo Pura LED's housing and mounting plate are made of coated die-cast aluminium. This enables the luminaire to withstand adverse weather conditions.

The flat, timeless, concise square design is unique: despite the integrated control unit, the luminaire has a height of just 40 mm. This allows it to blend discreetly and elegantly with walls and ceilings. No visible screws disturb the high quality appearance.

An exceptional talent outdoors: the uniformly illuminated cover generates pleasant, atmospheric light effects – ideal for prestigious areas. The light intensity can also be dimmed.

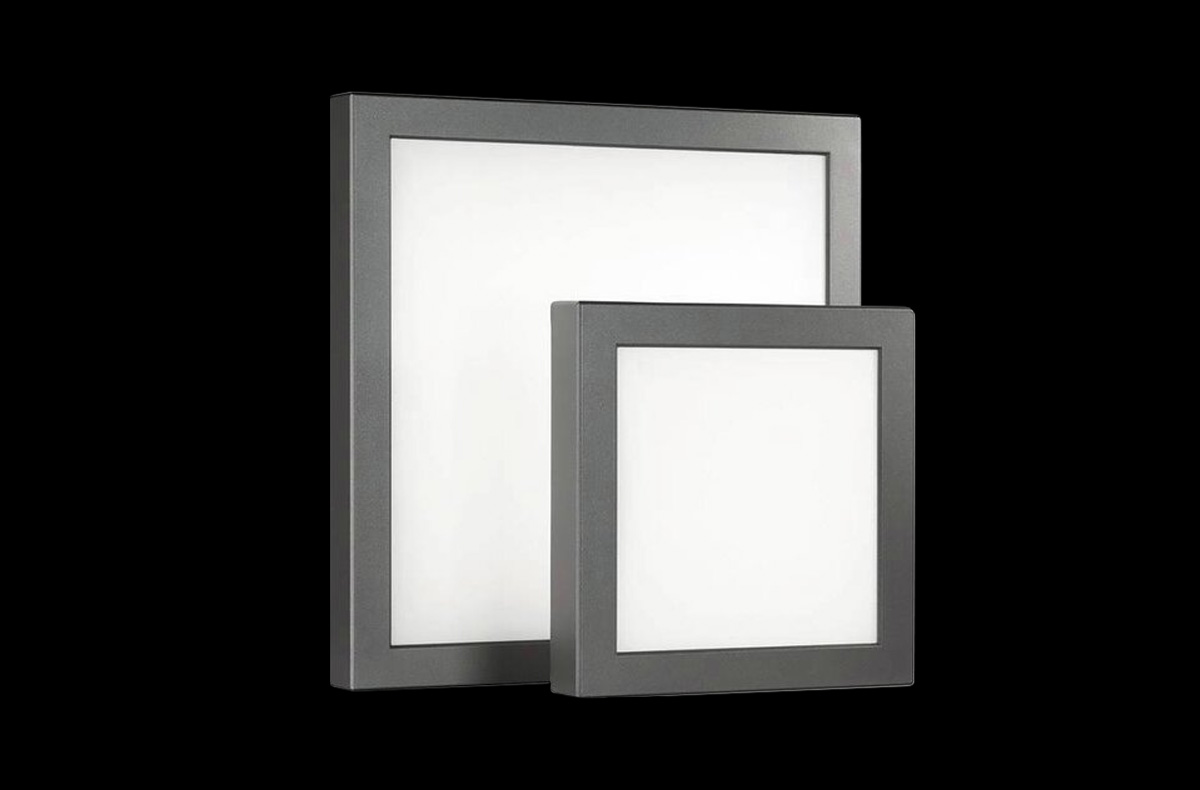

FLAT DESIGN

Flat design in a square look for illuminating prestigious facades

Qualitative, robust materials

The housing and mounting plate consist of corrosion-resistant die-cast aluminium. A complex surface treatment guarantees maximum resistance. After anodising, the material is treated with an epoxy powder primer and an age-resistant polyester powder coating. The cover consists of hardened white glass, 4 mm thick.

UNIFORM ILLUMINATION

Uniform and atmospheric lighting in outdoor areas with flexibly dimmable luminous intensity according to the time of day and season of the year

Technical information

Reference Value
Luminaire luminous flux: Skeo Pura 26: 500 lm, Skeo Pura 40: 1,650 lm
Connected load/efficiency: between 10 W – 25 W / up to 70 lm/W
Service life: 50,000 h
Colour rendering/-temperature: 830, 840
Electrical version: ET
Protection rating/safety class/impact resistance: IP65 / safety class I / IK07
Light distribution: rotationally symmetric wide distribution

Skeo Pura LED

view in the online catalogue
