The LiveLink ecosystem includes all components for intelligent light management within the building automation. The devices certified to the DALI-2 standard enable the flexible and precise control of lighting in various environments ranging from offices and retail lighting to industrial applications and outdoor lighting around buildings.
DALI-2 luminaires are compatible with the DALI-2 standard and can be controlled via the TRILUX LiveLink system. Individual address-setting and control enables precise regulation of brightness and other lighting parameters such as motion detection, general light, sequences and HCL curves. The combination of LiveLink with suitable DALI luminaires and other ecosystem devices achieves increased energy efficiency, more convenience and flexibility as well as greater safety.
Learn more
The LiveLink ecosystem uses intelligent DALI-2 sensors with different technologies for detecting people. The sensors for ceiling mounting detect both movement and the presence of people, and some are equipped with a light sensor that automatically adjusts the lighting to the desired level.
When commissioned with the LiveLink ONE app within a LiveLink WiFi installation, the system uses factory pre-configured sensor functions. The entire system is immediately ready for operation after the first start of the LiveLink ONE app (plug & play).

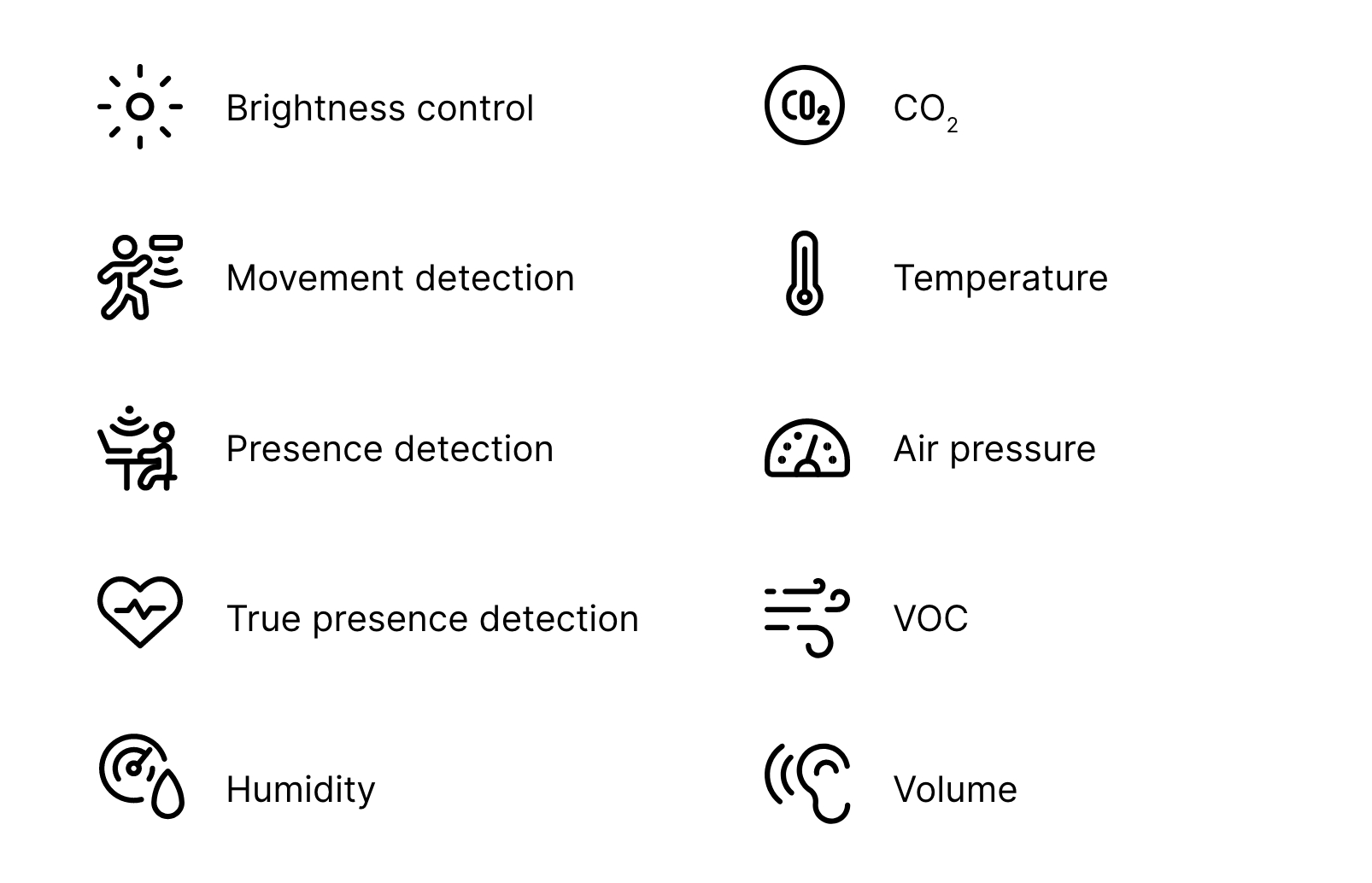

Legend Passive Infrared High frequency Ultrasonic
Applications: Corridor, Office, Education, Industry, Retail
Product category: Presence sensor DALI-2 input device: Yes IP protection rating IP20 Installation method: Flush-mounted
Detection angle: 360° Detection range radial: 8 x 8m (64m²) Detection range tangential: 20 x 20m (400m²) Detection range presence: 8 x 8m (64m²) Mounting height: 2,5 - 10m
View product
Application: Corridor, Office, Education, Industry, Retail
Product category: Presence sensor DALI-2 input device: Yes IP protection rating: IP54 Installation method: Surface-mounted
Detection angle: 360° Detection range radial: Ø 5,5m (24m²) Detection range tangential: Ø 24m (452m²) Detection range präsenz: Ø 7,5m (44m²) Mounting height: 2 - 4m
Application: Office, Education
Product category: Presence sensor DALI-2 input device: Yes IP protection rating: IP20 Installation method: Installed in ceiling
Detection angle: 360° Detection range radial: 4 x 4m (16m²) Detection range tangential: 4 x 4m (16m²) Detection range presence: 4 x 4m (16m²) Mounting height: 2,5 x 4m
Application: Office, Education, Industry, Retail
Product category: Presence sensor DALI-2 input device: Yes IP protection rating: IP20 Installation method: Flush-mounted
Detection angle: 360° Detection range radial: 4 x 4m (16m²) Detection range tangential: 6 x 6m (36m²) Detection range presence: 4 x 4m (16m²) Mounting height: 2 - 5m
Application: Corridor, Industry, Retail
Product category: Motion sensor DALI-2 input device: Yes IP protection rating: IP54 Installation method: Surface-mounted
Detection angle: Aisle, 360° Detection range radial: 12 x 6m (72m²) Detection range tangential: 23 x 6m (138m²) Mounting height: 2,5 - 5m
Product category: Motion sensor DALI-2 input device: Yes IP protection rating: IP54 Installation method: Flush-mounted
Application: Industry
Detection angle: aisle, 360° Detection range radial: 30 x 4m (120m²) Detection range tangential: 30 x 4m (120m²) Mounting height: 4 - 16m
Detection angle: 360° Detection range radial: Ø 14m (154m²) Detection range tangential: Ø 36m (1018m²) Mounting height: 4 - 14m
Detection angle: 360° Detection range radial: 30 x 19m (570m²) Detection range tangential: 30 x 19m (570m²) Mounting height: 5 - 16m
Application: Corridor
Product category: Presence sensor DALI-2 input devicee: Yes IP protection rating: IP20 Installation method: Flush-mounted
Detection angle: Aisle, 360° Detection range radial: 20 x 3m (60m²) Detection range tangential: 20 x 3m (60m²) Mounting height: 2,5 - 3,5m
Product category: Presense sensor DALI-2 input device: Yes IP protection rating: IP20 Installation method: Flush-mounted
Detection angle: Aisle, 360° Detection range radial: Ø 12m (113m²) Detection range tangential: Ø 12m (113m²) Mounting height: 2,5 - 3,5m
Detection angle: 360° Detection range radial: Ø 15m (177m²) Detection range tangential: Ø 15m (177m²) Detection range presence: Ø 15m (177m²) Detection range true presence: Ø 9m (64m²) Mounting height: 2 -12m
Detection angle: Aisle, 180° Detection range radial: 10 x 3m (30m²) Detection range tangential: 10 x 3m (30m²) Mounting height: 2,5 - 3,5m
Detection angle: 360° Detection range radial: Ø 10m (79m²) Detection range tangential: Ø 6m (28m²) Detection range presence: Ø 6m (28m²) Mounting height: 3,5m
When operating the LiveLink light management system manually, the control commands are executed by pressing a button. Alternatively, LiveLink systems can be controlled via an app. The information is forwarded to an executing LiveLink control device via the DALI interface or wirelessly via EnOcean push-buttons.
The LiveLink DALI-PB4 push-button coupler is used for the secondary connection of 4 commercially available potential-free push-buttons.
The LiveLink RF Pushbutton Kit consists of the LiveLink Enocean Gateway and an Enocean switch (2-gang and 4-gang rocker switch).
BACnet touch panel for operation within a LiveLink Premium system.
DALI-2 switch actuators are components of the LiveLink ecosystem that can switch electrical loads. They receive control commands via the light management system and switch the connected devices on or off accordingly.
TRILUX proprietary DALI-2 switch actuator for cavity boxes and ceiling installation.
TRILUX proprietary DALI-2 switch actuator for DIN rail mounting.
To operate a DALI installation with more than 64 devices per DALI line, either several LiveLink control devices or control gateways can be operated in parallel, or DALI repeaters (installed in the ceiling or mounted on DIN rail) can be used. The DALI repeaters of the LiveLink ecosystem can also be used to extend the DALI line once from 300 to 600 metres.
The repeaters galvanically isolate the bus devices and cascading is possible. The DALI repeaters of the LiveLink ecosystem can be operated as extenders as well. All DALI devices such as push-button couplers, sensors and luminaires can be connected here because all signals are sent bidirectionally in extender mode. Only one repeater/extender can be connected to a LiveLink DALI output.
TRILUX proprietary DALI repeater/extender for ceiling installation.
TRILUX proprietary DALI repeater/extender for DIN rail mounting.
Modern lighting solutions with light management systems enable the simple realization of digital added value. LiveLink solutions can be easily registered in the cloud. The "monitoring-ready" luminaires from TRILUX then allow the operating parameters of the lighting system to be monitored. This provides customers with a wide range of options: from analyzing energy consumption and lighting duration to the cost and CO2 savings achieved compared to an old system and predictive maintenance.
LiveLink provides users with a light management system that is suitable both for automated light control and for interaction with other systems within a building management system.
The LiveLink KNX interface enables LiveLink systems to be integrated into a KNX-based building automation system. The gateway serves as an interface both at telegram level and at data point level with up to 1000 communication objects. The connection is made via a LAN interface.
Modbus is an open communication protocol widely used in industrial automation. Modbus can be operated in conjunction with LiveLink via the Ethernet interface.
BACnet is an open communication protocol that enables communication between different systems and devices within a building. It standardises the way devices from different manufacturers exchange data and supports a variety of network technologies such as Ethernet, IP and others.
Do you have questions about LiveLink or generally about light management? We’re happy to help! On request we can personally demonstrate TRILUX light management to you in a live demo, so simply contact us without obligations – we look forward to meeting you!
