E-Line Pro

Faciella LED

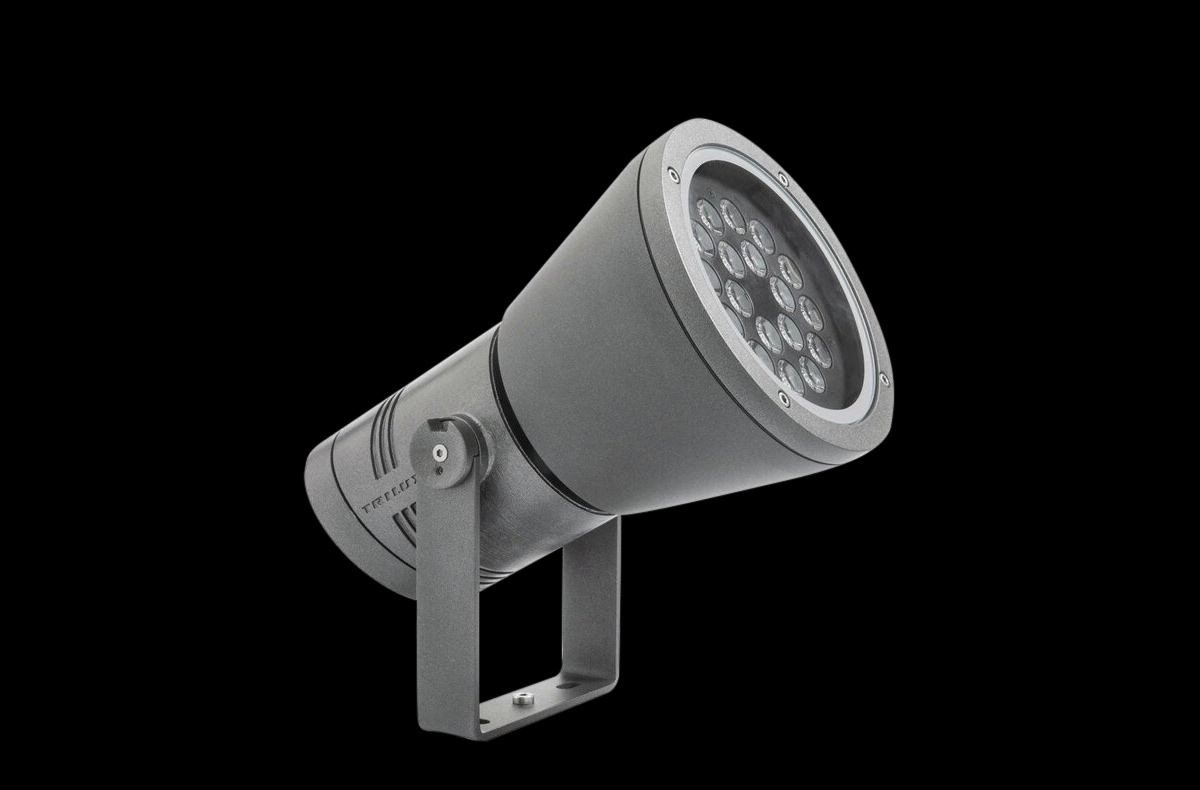

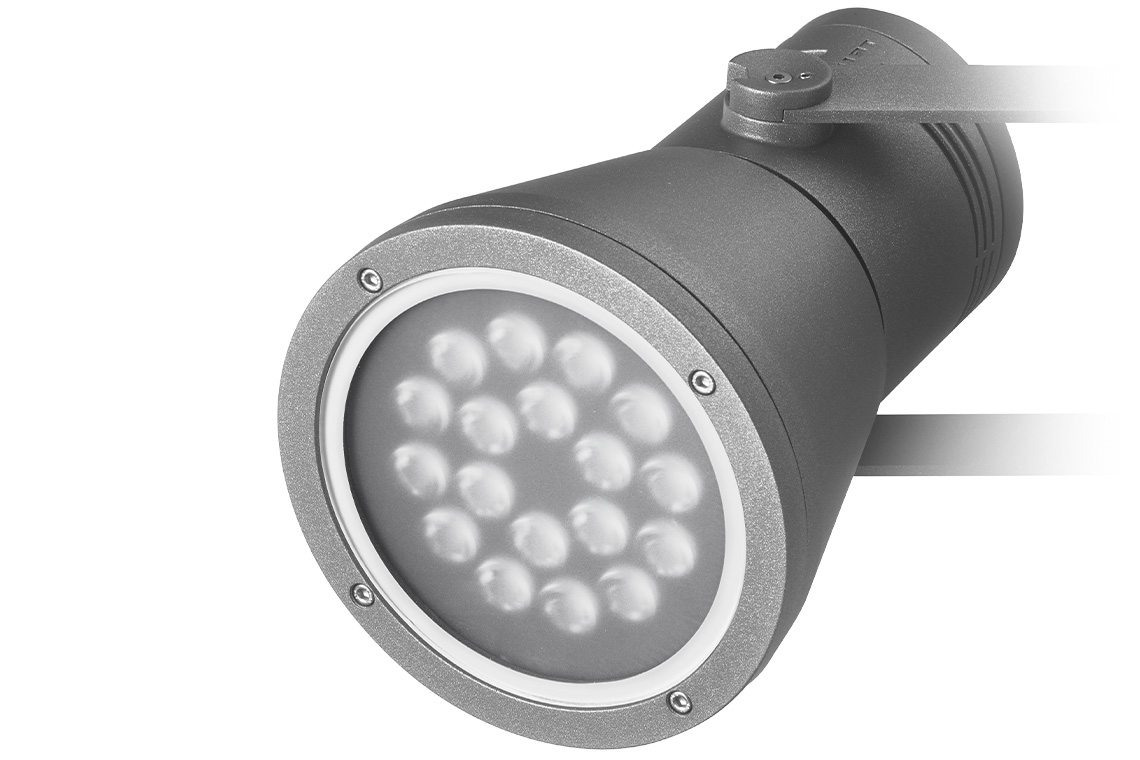

One projector. Three sizes. All possibilities.

Highlighting objects, surfaces and buildings – with Faciella LED the path to perfect light is easier than ever before. Completely different lighting tasks can be solved with a uniform design. The high-performance and energy-efficient projector is available in several construction sizes and with various luminous flux packages and beam angles for flexible use. The manually adjustable inclination angle simplifies precise targeting of the projector.

Product and application images

THREE CONSTRUCTION SIZES. A SINGLE DESIGN.

The Faciella LED projector is available in three construction sizes to effortlessly illuminate objects, surfaces and buildings of various types and sizes.

CUSTOMISED LIGHT.

Various luminous flux packages and beam angles enable solving different lighting tasks to emphasise the most attractive features of architecture.

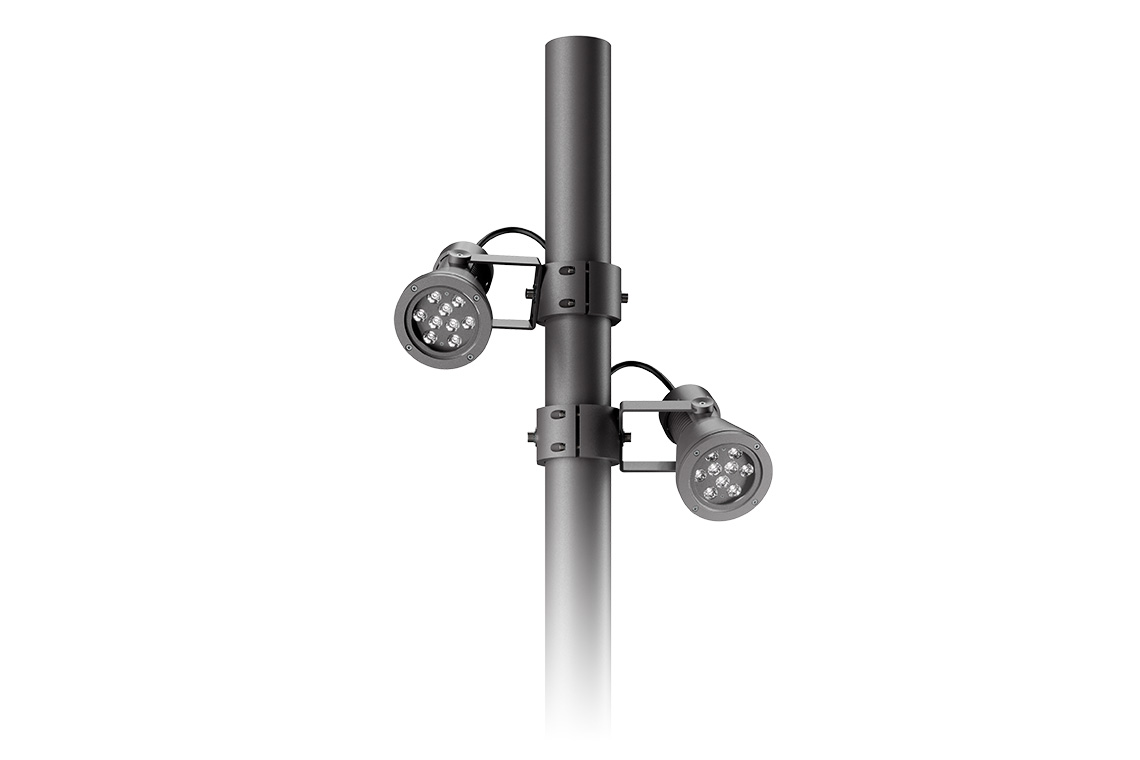

SIMPLE MOUNTING. MINIMUM EFFORT.

The Faciella LED is supplied with a ready-to-connect luminaire cable so there is no need to open the luminaire while mounting it. This simplifies and accelerates the installation process.

Technical Features

REFERENCE VALUES
Luminaire luminous flux: 500 lm, 1,000 lm, 2,000 lm, 4,200 lm
Connected load/efficiency: 7 W, 12 W, 42 W, 45 W / up to 102 lm/W
Service life: 50,000 h L80
Colour rendering/colour temperature: 830, 840
Electrical version: ET, RGB
Dimensions (L x W x H): Faciella 08: 165 x 66 x 80 mm
Faciella 15: 236 x 147 x 147 mm

Faciella 20: 300 x 200 x 200 mm
Protection rating/safety class: IP65/safety class II
Light distribution: Rotationally symmetric narrow (low) distribution (RT)
Rotationally symmetric narrow distribution (RE)
Rotationally symmetric medium-wide distribution (RM)
Rotationally symmetric wide distribution (RB)

Faciella LED

view in the online catalogue

View products
