E-Line Pro

Solegra LED

Strong appearance for light and luminaire

The challenge

The perfect lighting solution in modern worlds of work that feature creative, relaxation and work zones must not only be technically functional and visually attractive, but must also meet the individual needs of the employees. Currently trending are work surroundings with a pronounced atmosphere of well-being and a homely design in which each worker can fully utilise his or her potential.

The solution

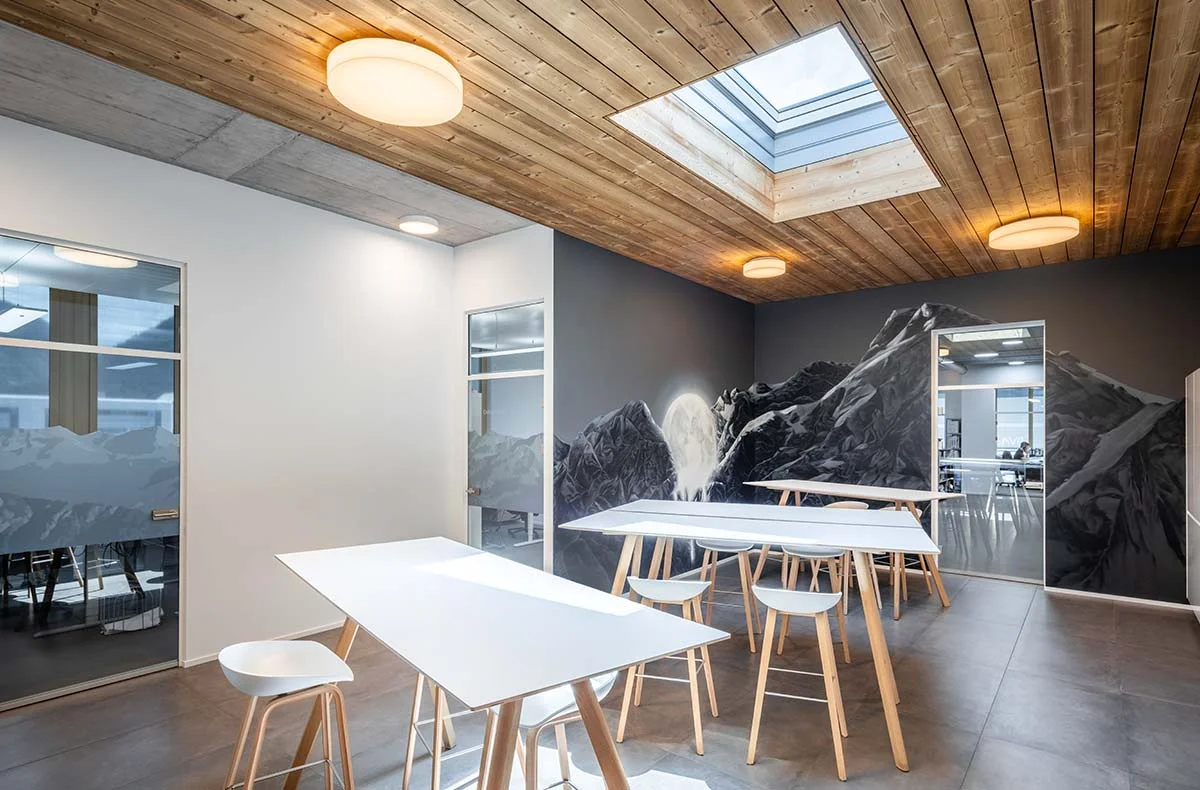

Similar to a large sun, Solegra LED floats beneath the ceiling and emits soft, uniform and glare-free light with balanced shadowing. The series of round luminaires immediately gives any room a special look. Thanks to various sizes, surface-mounted variants, optics and lighting technologies, creative zones can be attractively illuminated, as can VDU workstations, classrooms and prestigious sales spaces.

Connectivity

light management-capable, e.g. using the LiveLink light management system

HCL

as Tunable White version with daylight sequencing, lighting parameters such as light intensity and light colour can also be individually controlled via a light management system such as LiveLink

Saving energy

very good energy efficiency to 140 lm/W

Advantages with lighting design

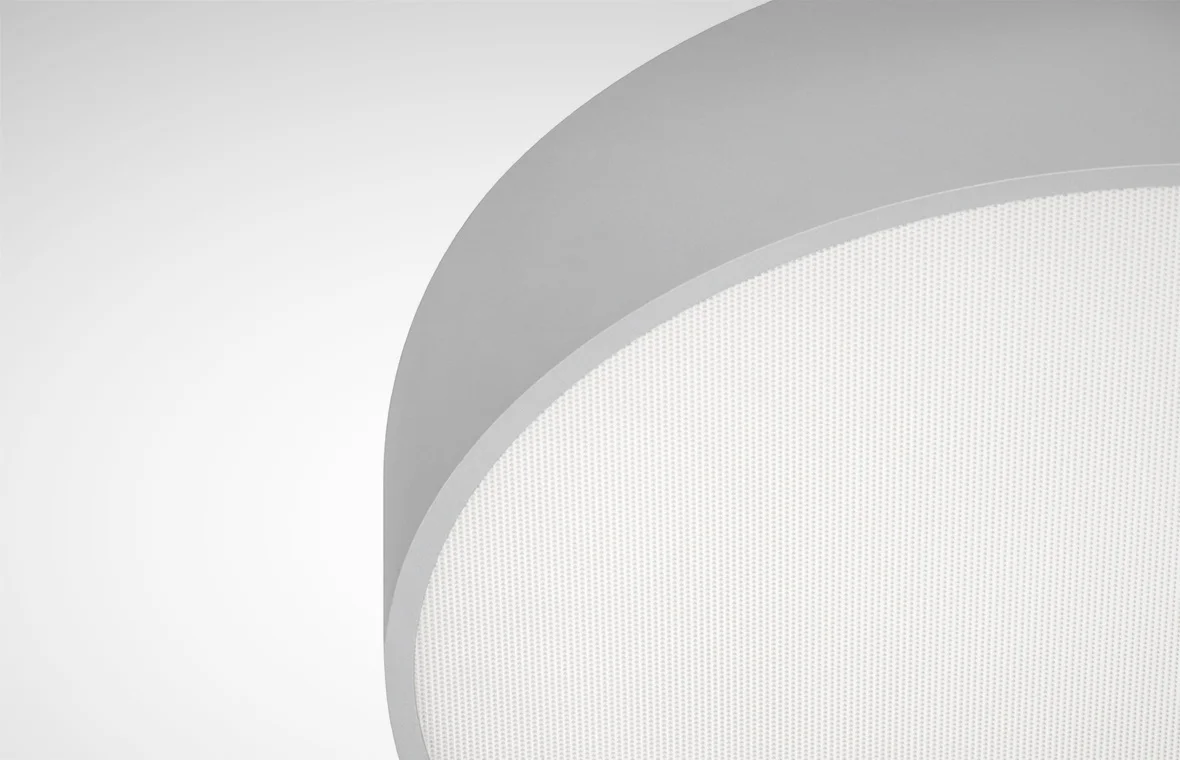

Solegra LED blends perfectly into any interior thanks to various construction sizes and mounting methods. The lighting technology and optic can be custom-adapted to the specific room utilisation – e.g. the version with micro-prismatic optic for the glare-free lighting of VDU workstations. The Solegra LED offers additional individual design options in the version with a closed, light-impermeable edge. The powder-coated aluminium ring accessory for this is available in the colours black, white and silver-grey by default.

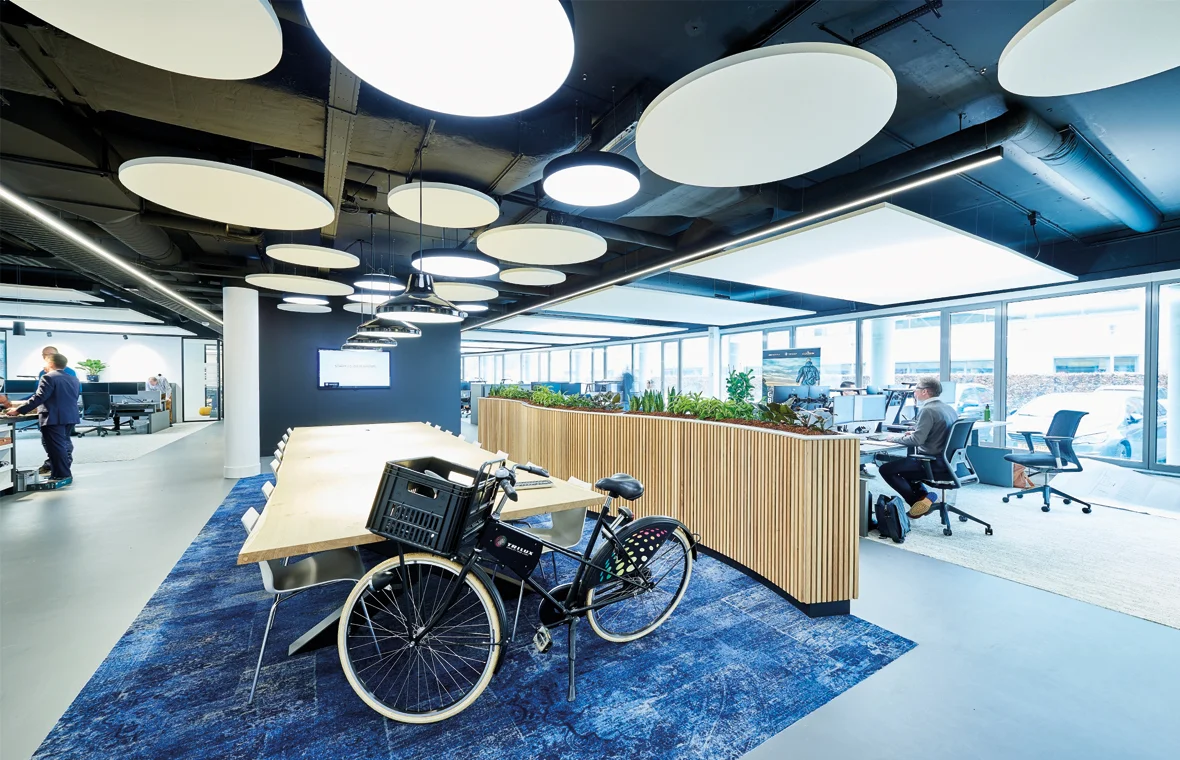

By its presence in the room alone, Solegra LED upgrades the atmosphere and creates a homely feel. Thanks to its purist design, the luminaire blends discreetly into the background and harmonises with almost any architectural surroundings thanks to four different construction sizes with diameters of 400 to 1200 mm. The luminaire can also be flexibly mounted in the room and thanks to its round, minimalist design has a very stylish appearance. Due to the different luminous flux packages, all sizes appear to be equally bright. As such, even swarm placements of the Solegra LED in different sizes are possible with a uniform light effect.

Solegra LED is not only light management-capable but also has an Tunable White version that optionally enables the lighting to be oriented to the natural course of the day. This light is capable of supporting the individual biological rhythm and offers maximum visual comfort for highly different work tasks, matched to the individual needs of the workers.

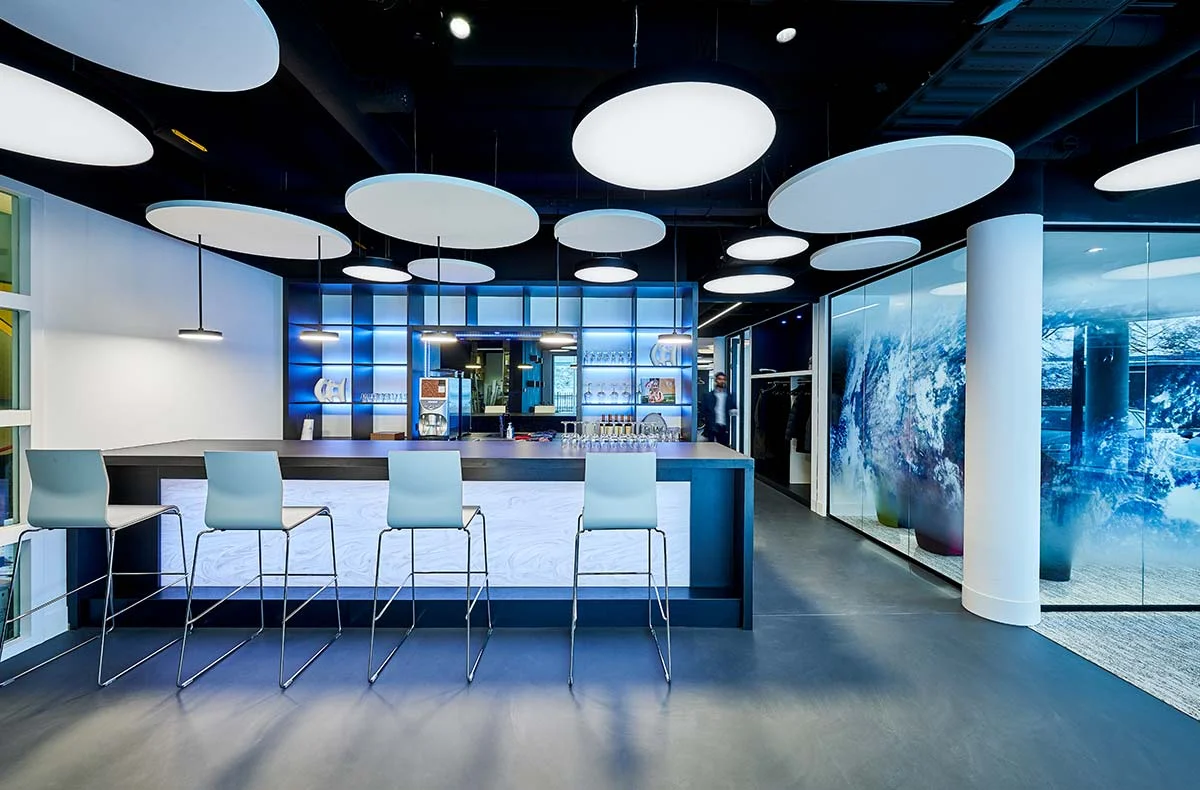

Because of its many variants, Solegra LED can be used to illuminate highly different areas of a building with a uniform design. The design fits perfectly with modern office structures featuring open space areas and communication zones. The optional aluminium ring of the Solegra LED is available in the colours black, white and silver-grey as well as, upon request, in other RAL tones. It blends harmoniously into the existing interior design. In combination with an insertable CDP cover, variants with UGR<19 can be implemented in a breeze. These provide for the right light at VDU workspace and can also be utilised in auditoriums or classrooms. The basic version with opal diffuser is perfectly suitable for the illumination of entrance areas or foyers as well as in the Shop & Retail sector.

Advantages with installation

Installation work above the head is often tiring in the long run. Solegra LED offers a clever solution for this: in the first step the mounting body is attached to the wall or ceiling and the luminaire body is fixed with a steel wire which prevents it from falling. The wire bears the weight during wiring – it couldn't be more convenient. The luminaire body is then rotated via a rotating mechanism into the mounting plate until it clicks in. A locking screw provides for additional support.

Solegra LED can be optionally installed as a wall, ceiling, suspended or recessed luminaire. With suspended luminaire installation a selection is made between two different pendant accessories: in addition to a version with three parallel wires and a ceiling rose, Solegra LED is also available with three conically tapering steel wires that come together in an installation-friendly ceiling canopy. The recessed luminaire is mounted in suspended ceilings using a mounting frame. The visible part of the luminaire is therefore freely selectable, and Solegra can be installed as a complete or partial installation.

Thanks to its circular shape, Solegra LED can also be positioned decentrally in the room without disrupting the harmony, e.g. in creative zones. Installation needs no complex lighting design because the round luminaire can be flexibly mounted in the room while featuring the same quality of light. Solegra LED shows its flexible side in terms of colour. The opaque-coated, translucent frame is available in the standard colours black, white and silver and also on request in other RAL colours.

Advantages in operation

Light emitted by Solegra LED is high-quality, uniform and without glare. A special room impact can be achieved thanks to the large, round light surface. The Tunable White version of Solegra LED is able to simulate the daytime sequence among other factors. Individual control of various lighting parameters such as light intensity and light colour means that the well-being and ability to concentrate can be positively influenced. This applies particularly to planar luminaires such as Solegra LED because the light from such luminaires reaches the eye via a wider surface.

With its simple, cylindrical shape, Solegra LED blends harmoniously and flexibly into any interior. The large round luminaire and pleasant light give the room a special style and homely ambience. This increases the attraction of the workplace.

The combination of purist design and innovative technology means the luminaire is ideal for modern offices having high demands on quality of light and room atmosphere. It blends into minimalist room concepts with clear structures or else sets specific contrasts in open space areas, for example with industrial design styles. The light management-capable Tunable White luminaire also enables flexible utilisation of the room by custom-adapting the light to the specific work situation. Typical further applications where the luminaire scores points via perfect light and its prestigious, modern design are auditoriums, open workplaces, communication zones, corridors, foyers and sales spaces.

Multifaceted

A round luminaire with purist design and innovative technology that blends stylishly into any interior design

HUMAN CENTRIC LIGHTING

The large light emission surface means it is especially suitable as an Tunable White version

New Work

CDP versions provide ideal lighting for VDU workstations

reduced design

Wide range of versions and individuality via various coatings and mounting methods

Flexible uses

Installation as a wall, ceiling, suspended or recessed luminaire

Technical data

A flexible series of round luminaires yes
Available as a surface-mounted or pendant luminaire, suitable for ceiling or wall mounting
Construction sizes: ø 400 I 600 I 900 I 1,200 mm
4 luminous flux packages: 3,000 I 6,000 I 10,000, 20,000

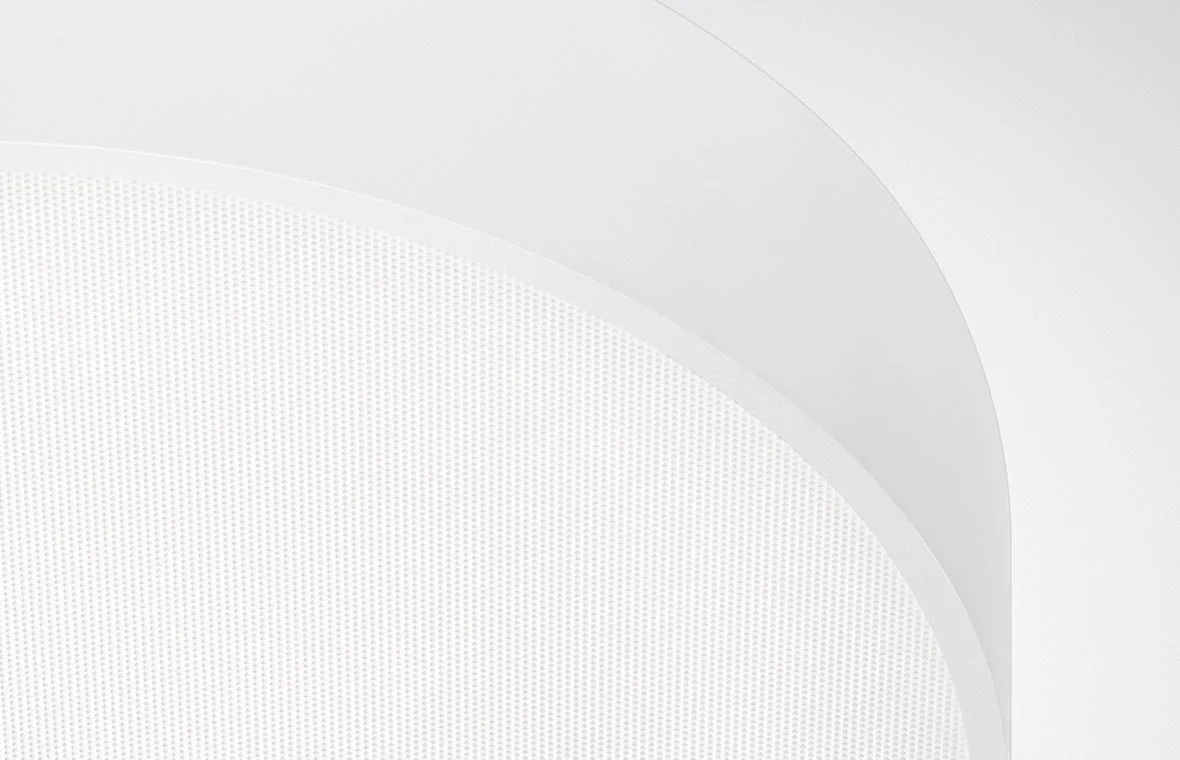

Optics: opal, homogeneously illuminated cover (UGR<22), optionally available with accessory ZP CDP with highly efficient micro prismatics (UGR<19)
Illumination effect: completely harmonious illumination effect due to uniform light emission, primarily direct light distribution, high level of lighting comfort due to decorative brightening of the ceiling.
Efficiency: up to 140 lm/W
Service life: 50,000 h, L80/B50, ta -20 to +25°C
Colour temperature: 3,000 K, 4,000 K or the HCL version with 2,700 – 6,500 K
Edge: available with opal, light-permeable edge or with accessory ZP or ZP CDP with closed, light-impermeable edge in multiple colours, height: 80 mm
